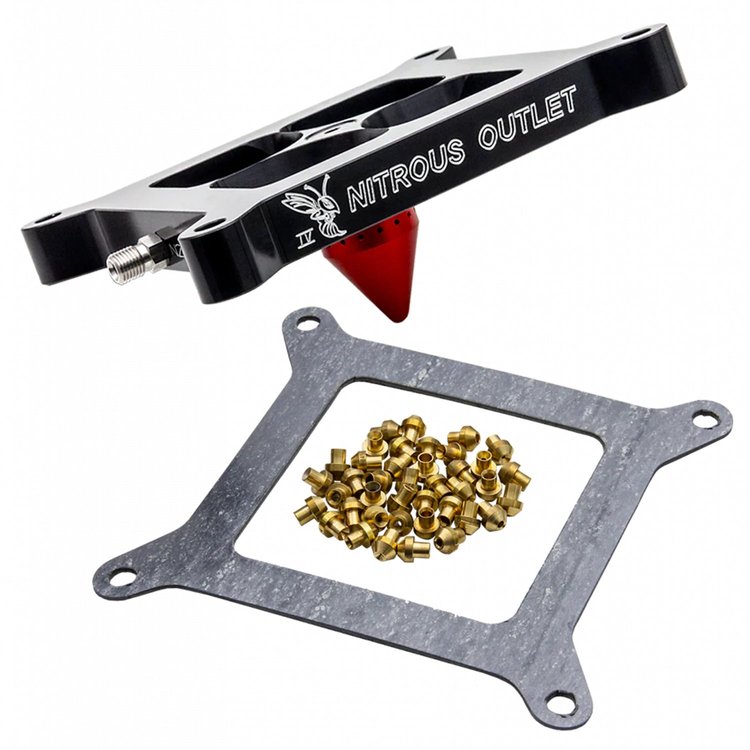

Nitrous Outlet 00-44603-GEN4-DRY Features:

• 4150 Flange Dry Nitrous Plate
• Includes gasket
• Nitrous jetting for 50-475hp
• Continuing Innovation: The Stinger 4 is an addition to the hugely successful Stinger Nitrous Plate lineup and is based on the same ideology that nitrous plates are not one-size-fits-all. It is designed to work with engine combinations that have airflow distribution issues and also have intake manifolds with a taller wall height between the top of the intake runner to the carburetor flange
• Design: The Stinger 4 is a single-entry nitrous plate that provides a max flow of 644hp. At a glance, the Stinger 4 is very similar to the Stinger 2 - however, the nitrous discharge port locations have been swapped. The nitrous discharge ports are on top and discharge at a 20 angle towards the corner intake runners and a 30 angle towards the center intake runners. On the proper intake, the nitrous would contact the base of the plenum wall, just above the port entry. Engine airflow then pulls the nitrous into runner, allowing each cylinder to ingest what it wants
• Construction: The 4150 plate and cone are manufactured from 6061 billet aluminum. The nitrous plate is .75 thick and black anodized with engraved Nitrous Outlet logos and N2O entry marking. The cone is anodized red and features 16 nitrous discharge holes. Premium gaskets are included as well as Jetting for 50-100-150-200-250-300-350-400-450-475 horsepower shots. This is a dry plate meaning it only injects nitrous oxide. Additional fuel for the nitrous will need to be added via your vehicles fuel system. We strongly recommend using this plate with a Nitrous Outlet Brand
• .122 nitrous solenoid
• Application: The Stinger 4 is designed to saturate 4150 flange single plane intake plenums with a 360 downward angle discharge pattern that will not interrupt airflow into the intake plenum. We suggest using the Stinger 4 plate with intake manifolds that measure 1 3/4 or more from the top of the intake runner to the flange. This plate is compatible with EFI!

Emissions Note:

This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
