Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
19'' Wheel Diameter

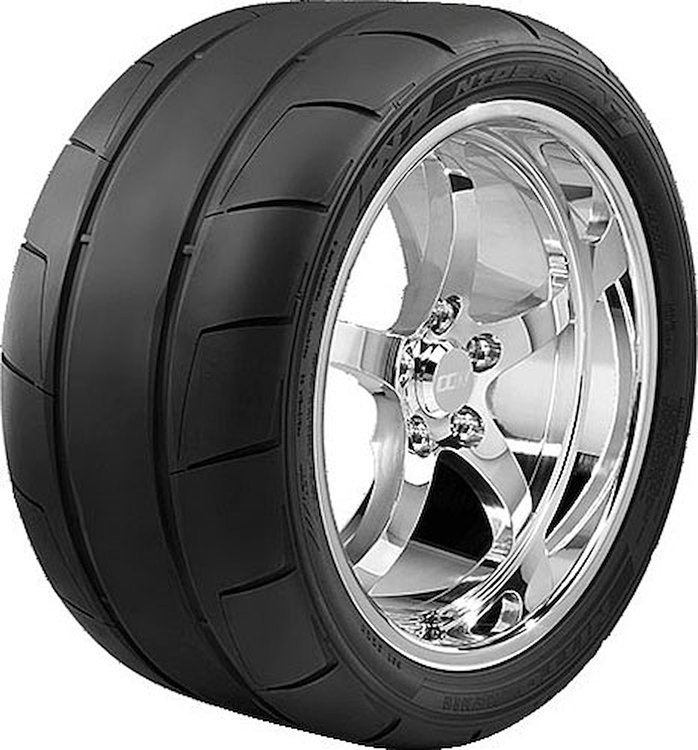

- Nitto NT05R Competition Drag Radial Tire
- 345/30R19
Tread Depth: 6/32' Tire Overall Diameter: 27.36' Tire Section Width: 13.43' Wheel Diameter: 19' Spec Wheel Width: 11.5"-12.0"-12.5" Max Load @ Max Press: 1653 lbs @ 44 psi Revs Per Mile: 759 Note: Bold type indicates measuring wheel width.
- The Nitto NT05R™ Competition Drag Radial Tires are designed for serious drag racing enthusiasts that require a D.O.T. compliant competition drag radial. They are recommended for dry competition use only. The large contact patches and special race compound have been engineered to promote even pressure distribution across the tread and provide maximum traction. The enhanced sidewall construction not only provides longitudinal launch traction but also maintains stability the entire pass through the top end. Nitto NT05R™ Competition Drag Radial Tires will get you off the line quickly and down the track with confidence, consistency and speed.Features
- Competition performance - The large solid center rib provides a continuous contact patch for dry traction.
- High Speed Stability - The enhanced sidewall construction combined with high-modulus bead filler and large shoulder blocks increase straight-line stability.
- Specialized Race Compound - The new drag racing-specific compound was engineered for increased traction at the starting line.
- A Perfect Pair - The NT05R drag radial works in unison with the NT05 Max Performance Street Radials, so you can put the drag radials on the rear axle, where rear-wheel drive vehicles need the most traction, and the NT05s on the front axle. When developing both product lines, Nitto developed sizing to fit modern performance vehicles.
Part TypeTire
Product LineNitto NT05R Competition Drag Radial Tires
BrandNITTO
Package Height14.0
Package Width26.75
Package Length26.75
Weight34.445 PG
Part CategoryPerformance Parts
Tire Size345/30-19
Temperature RatingB
Section Width (Mm)345
Speed RatingZ
Minimum Recommended Wheel Width11.5 in (292.1 mm)
Max Load Single (Lbs.)1,653
Load RangeLL
QuantitySold individually
Section Width13.75 in (349.3 mm)
Tire Diameter27.36 in (694.9 mm)
Sidewall StyleBlackwall
DirectionalYes
Aspect Ratio30
Asymmetrical Tread PatternNo
Tire ConstructionRadial
Tube RequiredNo
DirectionalYes
Load Index98
Dot-ApprovedYes
Wheel Diameter19 in (482.6 mm)
Tread Depth (In.)6.3/32
ApplicationRace/Strip
Maximum Recommended Wheel Width12.5 in (317.5 mm)
Vendor Part NumberN207-520
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
