Sportsman Fogger Nitrous System Small Block V8

Vehicle Info Needed

NOSPART NUMBER: 741-05088

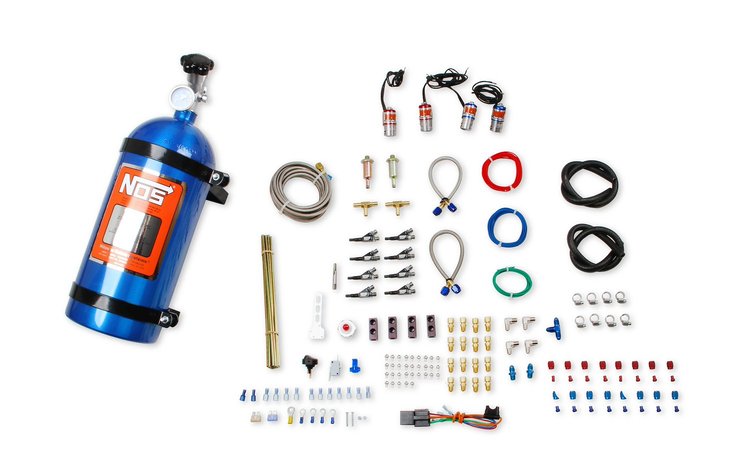

Sportsman Fogger Nitrous System Small Block V8

Name: Sportsman Fogger Nitrous System Small Block V8
Brand: NOS
SKU: 741-05088
Price: 1699.95 USD
Availability: InStock

^$1,699⁹⁵

Ships on 09/09/2026

Lowest Price Guarantee

Sportsman Fogger Nitrous System for V8 Engines

Small Block V8
Carb and EFI

Installation Notes:
To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi.
Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track.
Due to high power levels and cylinder pressures produced by Sportsman Fogger Systems it is highly recommended that you use high quality forged pistons and rods as well as high quality racing ignition system with timing control. If horsepower gain in more than 40% of original, forged pistons are recommended.
Jets Included:
Qty 8 each of #22, #24, #26 and #28 jets
Jetting is for 175 and 250HP power levels
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART

Part TypeNitrous System

BrandNOS

Package Height10.0

Package Width10.0

Package Length25.0

Weight26.9 PG

Part CategoryPerformance Parts

Nitrous System StyleWet

UsageStreet/Performance

Bottle Brackets IncludedYes

Nitrous Bottle Capacity (Lbs.)10

Jet Sizes Included (Hp)175, 250

Dual StageNo

QuantitySold as a kit

Delivery StyleDirect port/Intake manifold

ActivationMicroswitch

Bottle MaterialAluminum

Maximum Horsepower300

Bottle IncludedYes

TypePort Injected 8 cyl.

BottleWith Bottle

Nozzle Quantity8

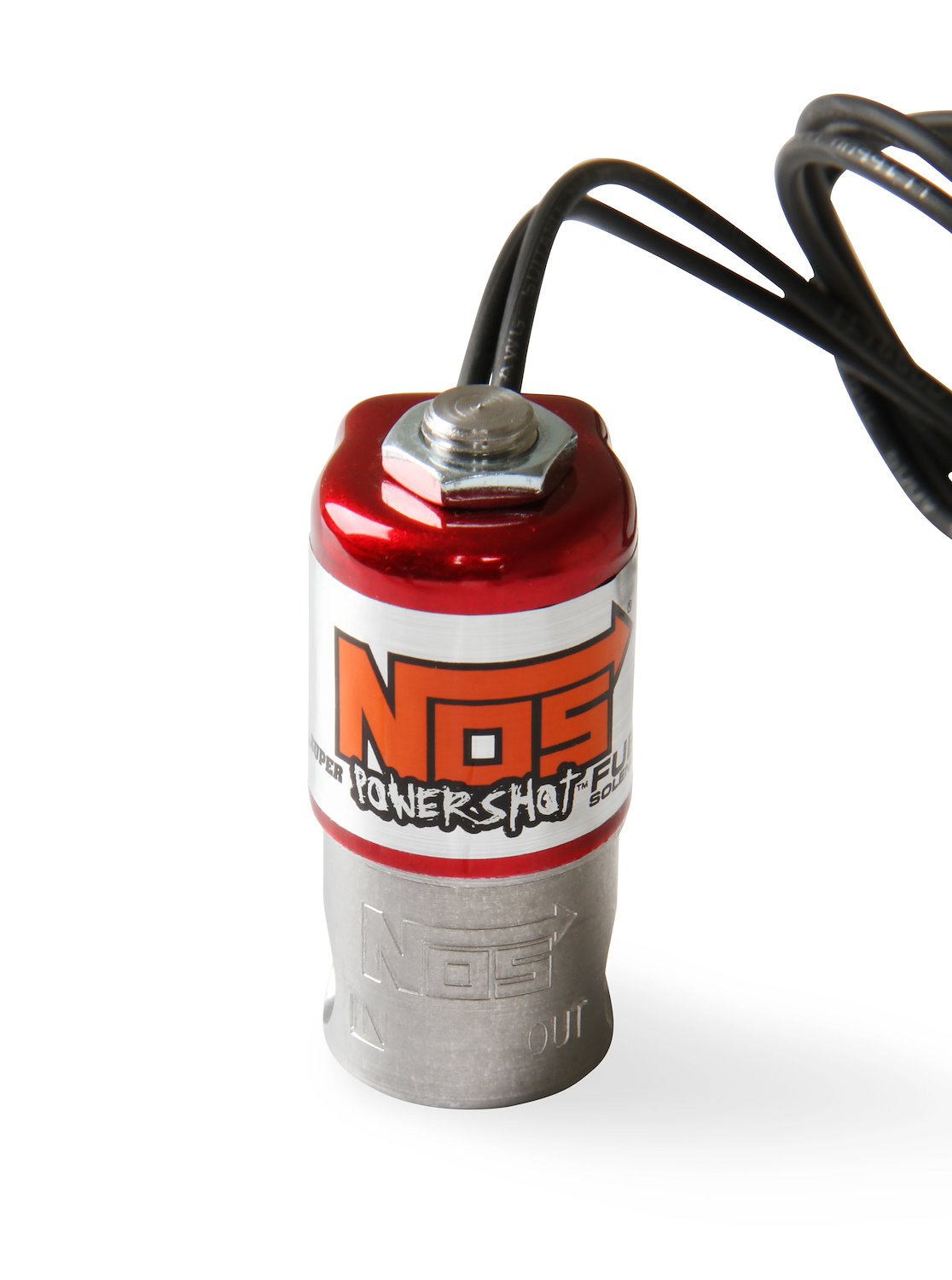

Fuel SolenoidPowerShot

Bottle ColorNOS Blue

Maximum Advertised Horsepower Increase250

Part FitmentSemi Universal

Bracket MaterialSteel

Solenoid Quantity4

Vendor Part Number05088NOS

Package Qty1

Package TypeEA

No Questions

No Reviews

Please click here to download the instructions PDF file
