Vehicle Info NeededNOSPART NUMBER: 741-15982

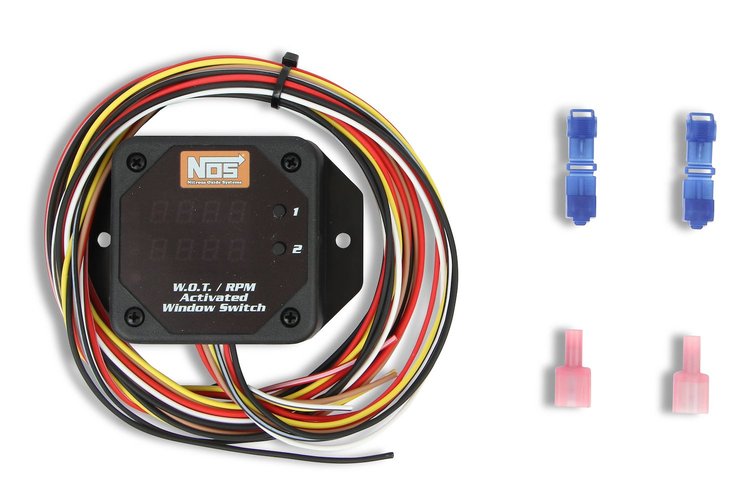

WOT/RPM Activated Window Switch
$31195
1 left in stock
Ships Today
Lowest Price GuaranteeWOT/RPM Activated Window Switch
- NOS WOT/RPM Activated Window Switch
- Bright/Easy To Read Display
- Live RPM And TPS Readings
- Recall Feature To View Max RPM And TPS Voltage Aft
- 2 Fully Programmable RPM Window Switches
- Easy Adjustments; No Need For RPM Pills
- Adjust TPS Trigger Voltage From 0 To 5 Volts
- Adjustable Shift Light Control
Window Switches Have Been Taken to the Next Level!
Are you tired of having to replace RPM pills every time you want to change the activation RPM of your nitrous kit or needing two RPM-activated window switches to control 2-stage nitrous? The NOS WOT/RPM Activated Window Switch is the answer to both of these issues so now you can rest at ease!
This product is compatible with 4-cycle engines from 1 to 12 cylinders and is a compact, user-friendly device with an easy-to-read display and two programmable RPM window switches that can operate from 0 to 20,000 RPM. best of all since it works independently of TPS (Throttle Position Sensor) it can be used on carbureted or fuel injected applications!
Show More
Features:
- Off/On RPM can be programmed from 0 to 9999 RPM in single RPM increments for precise control
(reading on display is times ten for applications over 9999 RPM) - RPM input can be connected to a DIS coil driver wire or tachometer output circuit
- Reads rising/falling TPS (throttle position sensor) signal for accurate activation every time
- TPS trigger voltage is adjustable from 0 to 5 volts in 1/10 increments
- Use the display to recall/view maximum RPM and TPS voltage for a simpler setup on your next pass
- Shift light control is adjustable from 0 to 9999 RPM for on-time shifts
- Bright LEDs light up when stages are active
- Ideal for drive-by-wire vehicles that don't have throttle cable to mount a traditional activation switch
- Can be used to activate other accessories, not just nitrous
- Handy recall feature allows the max RPM and TPS voltage to be viewed after a run
Part TypeRPM Switch
Product LineNOS WOT/RPM Activated Window Switch
BrandNOS
Package Height4.2
Package Width5.8
Package Length6.5
Weight0.83 PG
Part CategoryPerformance Parts
QuantitySold individually
Part FitmentUniversal
Rpm Activated Switch MaterialPlastic
Adjustment StyleInternal dip switches
Vendor Part Number15982NOS
Package Qty1
Package TypeEA
