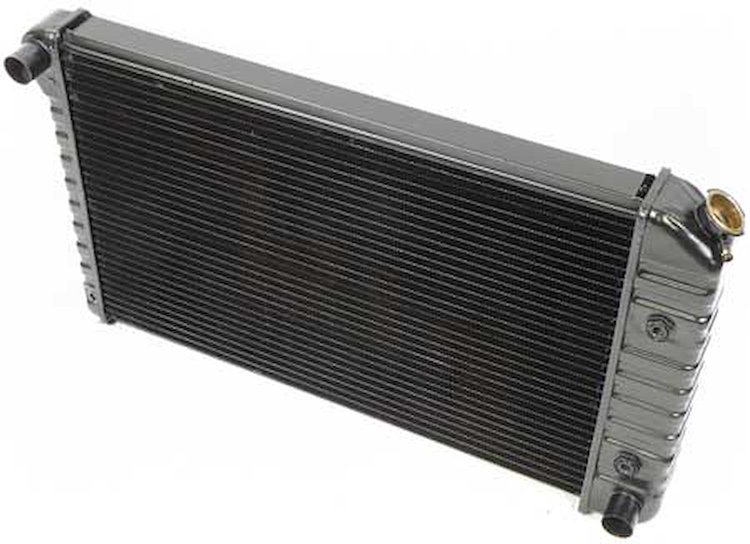

OER CRD1504A Features:

Reproduction radiators install exactly like original! Unlike aftermarket replacements, our radiators mount correctly using original style brackets. Aftermarket radiators are usually not suited for installation to maintain originality. The origina l appearance is important to your restoration. Beware of replacement radiators which do not have the correct brackets for mounting. Each Classic radiator is equipped with a new tank and core. Not a rebuilt! Comes complete with original style mounting brac kets attached and installs as original to the radiator support. The fan shroud must be replaced if your are installing a radiator for air conditioned models on a vehicle which did not include factory air.This helps to maintain a correct fit and sufficient air flow to the engine. All radiators include a 6-month limited warranty.

No Exchange Required! No Core Charge!

Note: Fan shrouds, fan shroud brackets, radiator petcock, radiator cap and shroud mounting c lips are available separately. Due to dimensionaldifferences, fan shrouds are not interchangeable between air conditioned models and non air conditioned models.

Application:

• 70-71 Firebird V8 / L6 A/T

Dimensions:

• 17" x 27-1/2" x 2-5/8" 4 row.

Important:

• LH side mount 2-3/4" wide
• RH side mount 3-1/2" wide
