Timing Chain Cover for 1966-1991 AMC 290, 304, 343, 360, 390 and 401 V8 Engines
InfoVehicle Info Needed
OMIX-ADAPART NUMBER: 440-17457.05

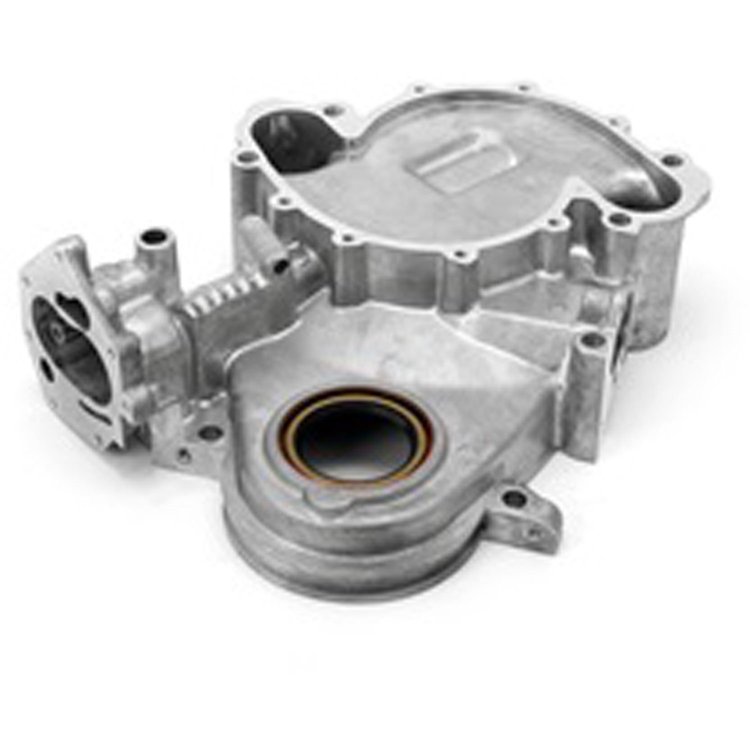

Timing Chain Cover for 1966-1991 AMC 290, 304, 343, 360, 390 and 401 V8 Engines

$22998
ShippingShips on 02/22/2027
Lowest PriceLowest Price Guarantee

Items You Need

Oil Pump Cover for 1966-1991 AMC & Jeep 290, 304, 343, 360, 390 & 401 V8 Engines

OMIX-ADA

Oil Pump Cover for 1966-1991 AMC & Jeep 290, 304, 343, 360, 390 & 401 V8 Engines

Part Number : 440-17470.15
$4913
Oil Pump Repair Kit for 1966-1991 AMC & Jeep 290-401 V8 Engines

SEALED POWER

Oil Pump Repair Kit for 1966-1991 AMC & Jeep 290-401 V8 Engines

Part Number : 844-224-51285
$2999
Timing Cover Gasket Set for 1966-1991 AMC & Jeep 290, 304, 343, 360, 390 & 401 V8 Engines

CLEVITE MAHLE

Timing Cover Gasket Set for 1966-1991 AMC & Jeep 290, 304, 343, 360, 390 & 401 V8 Engines

Part Number : 695-JV870
$1599
Break-In Oil, 10W30 [1 Quart, 32 oz.]

JEGS

Break-In Oil, 10W30 [1 Quart, 32 oz.]

Part Number : 555-28067
$899$9.99
You Save$1.00

Timing Chain Covers
Timing Chain Cover
  • 1966-1991 AMC Cars and Jeeps
  • 290, 304, 343, 360, 390 and 401 V8 Engines
  • Die-Cast Aluminum
  • OEM Style Replacement

    Omix 17457.05 AMC V8 Timing Cover for 290, 304, 343, 360, 390, and 401 V8 Engines is a direct replacement for the factory cover. This replacement timing cover is made with aluminum alloy material, die-cast for strength, and precision machined for a perfect fit. These covers are prone to fail in the oil pump cavity due to oil contaminants and gear tolerance issues that can cause low oil pressure or no oil pressure and catastrophic engine failure. The oil pump cover and gear set are not included and can be purchased separately. We recommend Omix oil pump cover 440-17470.15, Federal-Mogul Sealed Power oil pump gear kit 844-224-51285, and Clevite MAHLE Timing Cover Gasket Set 695-JV870

    Omix 17457.05 AMC V8 Timing Cover Notes:

    • Low oil pressure is the number one cause of engine failure in AMC V8 Engines. Oil Pump Gear tolerance is very important and must be checked during assembly. Please refer to the AMC TSM (Technical Service Manual) for correct tolerance settings and procedures. The gear to bottom cover clearance should be set at .0025-.0065 to ensure good oil pressure at idle.
    • Critical Engines Components For Jeeps

      Omix-ADA replacement parts will keep your Jeep working like new with components that meet or exceed OEM quality control standards. Don't put up with worn-out parts on your Jeep; get the quality parts you need from Omix-ADA!

    Part TypeTiming Cover
    Product LineOmix-ADA Jeep Engine Parts
    BrandOMIX-ADA
    Package Height4.7
    Package Width12.15
    Package Length13.1
    Weight5.33 PG
    Part CategoryReplacement Parts
    Part FitmentDirect Fit
    Vendor Part Number17457.05
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
