Vehicle Info NeededORACLE LIGHTINGPART NUMBER: 188-5769-001

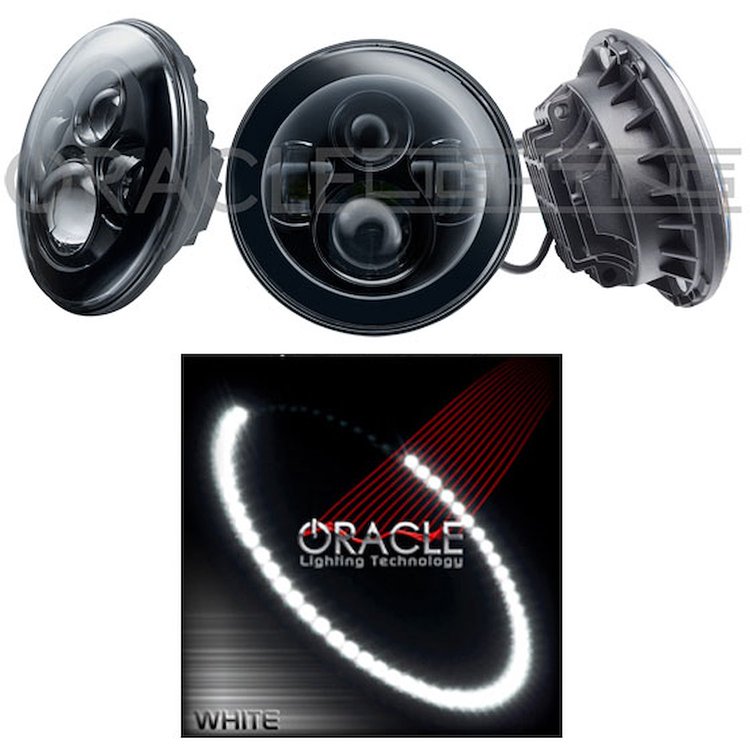

High Powered Sealed Beam Headlight Black Bezel
$26910
More than 10 available
Ships on Nov 02, 2026
Lowest Price GuaranteeBlack Bezel
High Powered Sealed Beam HeadlightBlack Bezel White LED Halo
Features
- Low Beam Wattage: 30W Normal/36W Max
- Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
- High Beam Wattage: 40W Normal/48W Max
- High Beam Lumens: 3600 Lumens/4800 Raw Lumens
- Main LED Color Temperature: 6000K (Cool White Color)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (If Included): 12V DC
- Current Draw: 2.50 Amps @ 12V DC / 1.30 Amps @ 24V DC
- Uses H4 or H13 Plug (Adapters Included)
- Black or White Bezel Color
- Optional ORACLE Halo Rings Pre-Installed
- Premium Performance High-Output CREE LEDs
- Die-Cast Housing with Corrosion Resistant Coating
- Heavy Duty Solid-State Electronics
- Hard-coated Polycarbonate Lens
- Wide Beam Pattern with Sharp Cut-Off Line
- Easy Plug & Play Installation
Brighten-up the Night with LED Headlights
The Ultimate LED replacement headlight option for any vehicle with 7 in. Sealed Beam lamps. The rugged design is perfect for Off-Roaders, Buggies, or any Classic Wheeler! Installation is very easy with the included H4 and H13 "Plug and Play" connectors. The kit even includes a set of H13 plugs with built-in warning cancelers at no additional charge! Each set comes in full-color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose from a dozen Halo colors for even more customization!
Part TypeHeadlight Assembly
Product LineOracle High Powered Sealed Beam Headlights
BrandORACLE LIGHTING
Package Height5.2
Package Width10.2
Package Length16.0
Weight5.48 PG
Part CategoryAccessories
Add-On PartNA
Part FitmentDirect Fit
Vendor Part Number5769-001
Package Qty1
Package TypeEA
Some parts are not legal for use in California or other states with similar laws / regulations
