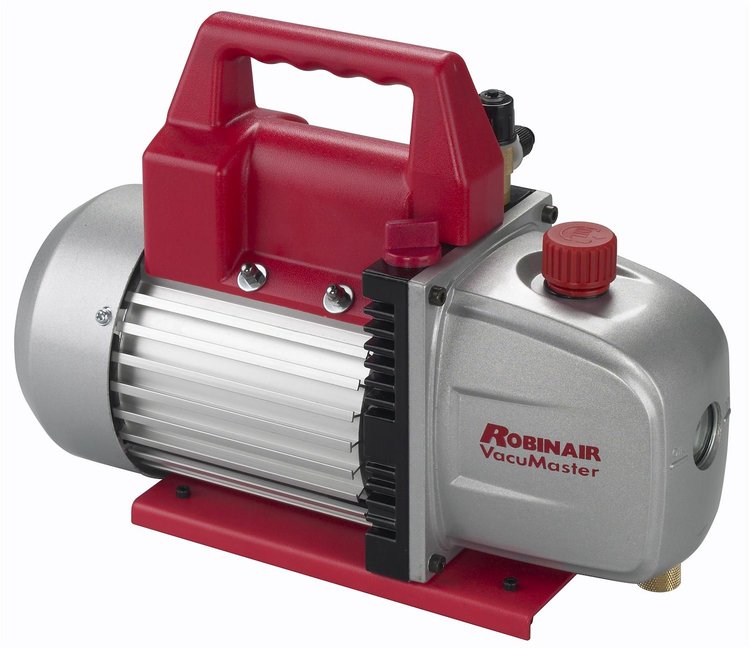

OTC Tools 15800 Robinair 8 CFM 2-Stage Vacuum Pump:

• 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
• Heavy-duty motor: Sealed bearing, high-torque design for easy startup and efficient operation
• Angled oil drain valve: faster, more complete draining
• Easy view sight glass: Easily see oil levels
• Top oil fill port: Better access when refilling oil
• Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
• Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
• Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
• Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants

OTC Tools 15800 Robinair 8 CFM 2-Stage Vacuum Pump Specs:

• Free air displacement: 8 CFM
• Factory micron rating: 35 microns
• Stages: 2
• Intake fitting: 1/4" MFL and 3/8" MFL
• Oil capacity: 18.6 oz. (550 ml)
• Motor size: 1 hp
• Voltage: 115V 60Hz
• Approvals: CSA
• Weight: 37 lbs. (16.8 kg)
• Dimensions: 16" H x 6" W x 10" L (406" mm x 152mm x 254mm)
• Uses: Up to 70 tons (246 kW)
• Cord length: 6' (1.8 m)

OTC Tools 15800 Robinair 8 CFM 2-Stage Vacuum Pump Notes:

• Not for use with ammonia or lithium bromide systems
• Not for use with A4L or other flammable refrigerants
