Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Bottle Jack
- 12 Ton

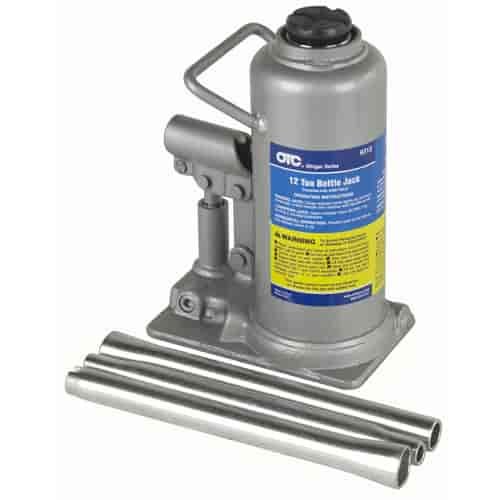

12-Ton Bottle Jack - Forged base and cylinder to ensure strength and eliminate leaks.
- Chromed pump piston and ram for additional rust resistance.
- In-line design for increased ease of use in positioning and operation.
- Includes free seal kit with each unit to extend product life.
- ANSI/PALD compliant.
- Stroke - 6"
- Retracted Height min. - 9-3/8"
- Length of Screw Extension - 3-1/4"
- Height with Screw Extension - 18-5/8"
- Pump Strokes to Extend Piston One Inch - 21
- Saddle Dia. - 1-3/4"
- Base Size - 6-9/16" x 4-3/16"
- Carry Handle - Yes
- Weight - 18.9 lbs.
Part TypeBottle Jack
BrandOTC TOOLS
Package Height5.9
Package Width8.0
Package Length10.5
Weight18.77 PG
Part CategoryAccessories
Minimum Width4.188 in (106.375 mm)
Maximum Width6.563 in (166.7 mm)
Maximum Lift Height18.625 in (473.075 mm)
Minimum Height9.375 in (238.125 mm)
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
