Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- Bottle Jack
- 20 Ton
- Short

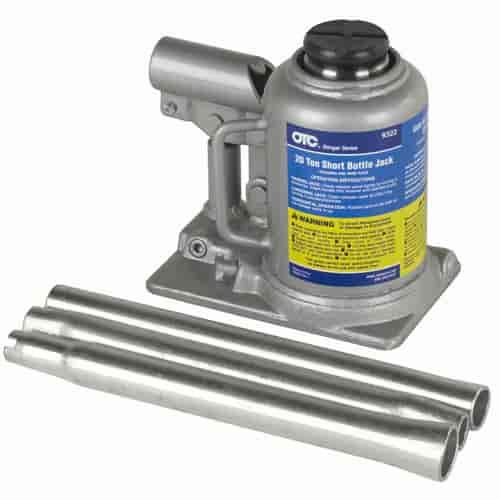

20-Ton Short Bottle Jack - Forged base and cylinder to ensure strength and eliminate leaks.
- Chromed pump piston and ram for additional rust resistance.
- In-line design for increased ease of use in positioning and operation.
- Includes free seal kit with each unit to extend product life.
- ANSI/PALD compliant.
- Stroke - 3-7/16"
- Retracted Height min. - 7-3/16"
- Length of Screw Extension - 1-11/16"
- Height with Screw Extension - 12-5/16"
- Pump Strokes to Extend Piston One Inch - 25
- Saddle Dia. - 2-1/8"
- Base Size - 7" x 4-11/16"
- Carry Handle - Yes
- Weight - 22.5 lbs.
Part TypeBottle Jack
BrandOTC TOOLS
Package Height7.3
Package Width9.8
Package Length11.5
Weight22.83 PG
Part CategoryAccessories
Minimum Width4.688 in (119.075 mm)
Maximum Width7 in (177.8 mm)
Maximum Lift Height12.313 in (312.75 mm)
Minimum Height7.188 in (182.575 mm)
Package Qty1
Package TypeEA
