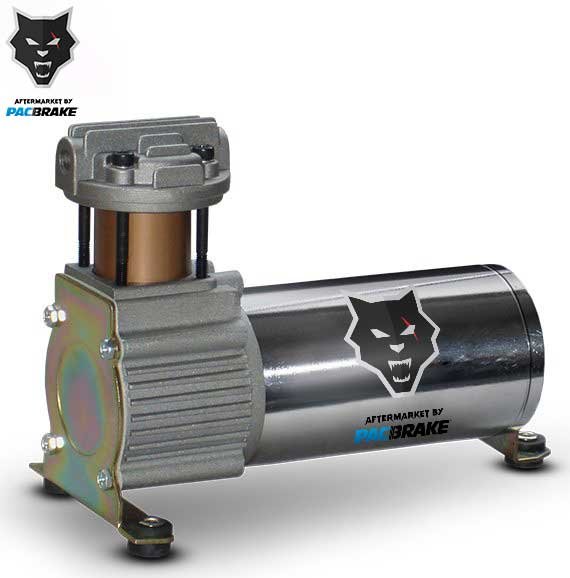

PACBRAKE HP10139 Features:

Compressor features:

• A copper wire wound permanent magnet motor
• Oil-less design
• Sealed bearings
• Cast aluminum cylinder head
• Hard anodized aluminum sleeve
• PTFE piston ring
• Mountable in any orientation

Compressor Specifics:

• Duty Cycle: 33% (20 Minutes @ 100 psi)
• Max Working Pressure: 150 psi [1034 kPa]
• Voltage: 24 VDC
• Size: 8.7" x 4" x 6.2" (LxWxH)
• [221 mm x 102 mm x 158 mm]
• Weight: 5.5 lbs [2.49 kg]

PACBRAKE HP10139 Notes:

• Not approved for use with tanks over 2.5 gallons.
