PACBRAKE HP10151 Features:

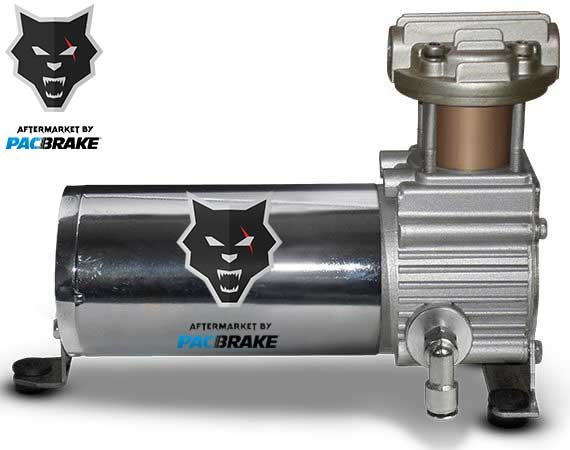

24V HP325 Series Basic Air Compressor Kit consists of an air compressor and required hardware only.

This Basic Air Compressor Kit comes with HP325 Series compressor (Part Number HP10139) and Does Not Include any pre-built harnesses.

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

Compressor Specifications

• (Part Number HP10139)
• 24 VDC
• 100 percent (1 Hour at 100 PSI) duty cycle
• 1/4 HP
• Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
• Weight is 5.5 lbs.

Details:

• Pacbrake Series
• Volts 24 Volt
• Hardware Included Yes

PACBRAKE HP10151 Notes:

• This Basic Air compressor kit comes with 24 VDC compressor and all required hardware. Not approved for use with tanks over 2.5 gallons.
