This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

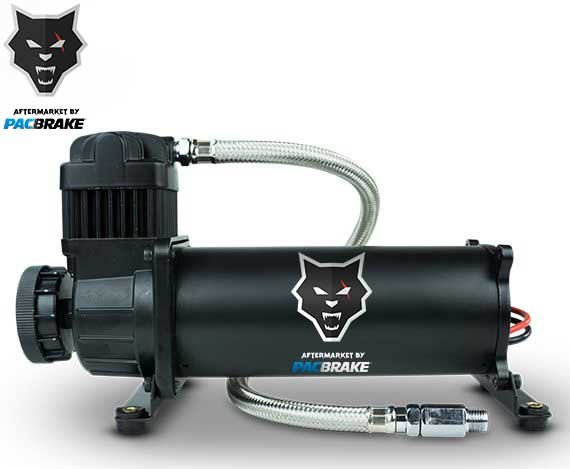

PACBRAKE HP10300-B Features:
Pacbrake's HP425 series Pacbrake air compressors have a 50% duty cycle (30 minutes on / 30 minutes off), deliver 1/4 horsepower and are offered in 12 VDC.
Compressor features:
- Matte Black Finish
- A copper wire wound permanent magnet motor
- Oil-less design &Pacbrake; sealed bearings
- Hard anodized aluminum cylinder sleeve
- PTFE piston ring
- Mountable in any orientation
Compressor Specifics:
- Compressor Model: HP10130 (12 VDC)
- Compressor Size: 10.8" x 3.9" x 6.6" (LxWxH) [275 mm x 100 mm x 167 mm]
- Compressor Weight: 10.26 lbs [4.65 kg]
- 1/2 Gallon Tank (HP10053): 24 seconds for 0 - 100psi; 21 seconds for 100 - 150psi
- 2.5 Gallon Tank (HP10050): 135 seconds for 0 - 100psi; 110 seconds for 100 - 150psi
- 5 Gallon Tank (HP10050): 255 seconds for 0 - 100psi; 230 seconds for 100 - 150psi
PACBRAKE HP10300-B Notes:
- Matte black finish.
Reliable Compressors for On-Board Air Delivery
Experience fast and easy inflation capabilities right at your disposal with PACBRAKE Air Compressors. Ideal for various applications such as air suspension, air horns, inflatables, flat tires, and small air tools. These compressors feature an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor, and a hard-anodized aluminum sleeve, ensuring high-quality performance. Available in 12 and 24 V versions.
