PACBRAKE HP10470-QM Features:

Get a Quickie in your truck today!

HP10470-QM Wireless Controls features

• Military grade solenoids Designed to withstand extreme environments
• Waterproof and debris resistant Demand a Pacbrake IP67 rated controller
• Don't experience the irreparable debris clogs of other leading products! Our compressor has accessible components that allow easy serviceability and replacement of parts
• Smarter App An easy to use app that reads real time pressure feedback within each air spring and provides more of the data you need. The app has 3 built-in memory presets so you can quickly achieve your desired air spring pressure.
• Faster Fills Up to 10% faster than the leading competition
• Ultra Easy Install Pre-installed push-to-connect air fittings and pre-assembled wiring connectors reduce installation time

Pacbrake Wireless Controls are a universal fit. They fit the frame of any vehicle, work with any air spring on the market. They can also be easily installed with common mechanic tools - no lines or wires to the cab and no drilling required!

The kit comes with everything required for install:

• Air compressor, controller, solenoid block, pressure sensors and harnesses
• Free Phone app (For use with Android 4.3+ or Apple iOS 10.3+ mobile device)
• Air lines, pressure connectors and mounting hardware

HP10470-QM Wireless Controls come with 2 year warranty.*

*Refer warranty terms and conditions for additional details.

Product Specifications:

MAX WORKING PRESSURE / DUTY CYCLE

• 1034 kPa [150 psi], 33% @ 689.5 kPa [100 psi]

MAX CONTINUOUS RUN TIME

• 20 Minutes ON / 40 Minutes OFF

RATED FLOW

• 31.1 L/min [1.1CFM] @ 0kPa [0 psi]

INDEPENDENT / SIMULTANEOUS FILL

• Simultaneous

INGRESS PROTECTION

• IP55 Compressor, IP67 Electric Connectors

WEIGHT

• 3.38 kg [7.45 lbs]

AMBIENT OPERATING TEMPERATURE RANGE

• -40C to +70C [-40F to +158F]

NOMINAL SUPPLY VOLTAGE 12 VDC MAX CURRENT DRAW

• 17 Amps

PACBRAKE HP10470-QM Notes:

• Wanna quickie in your truck?
• Pacbrake Wireless Air Spring Controls give you the ability to adjust your air spring pressure from your phone with the touch of a button.
• No more air adjustments in the rain or snow. Adjust your air springs independently from inside or outside of the vehicle.
• Military grade solenoids designed to withstand extreme environments. IP67 rated controller that is waterproof and debris resistant.

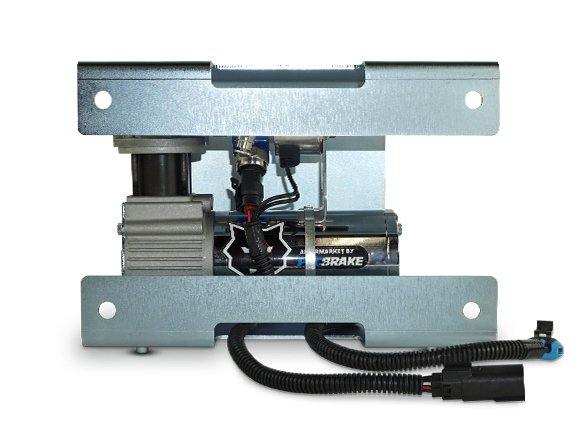

• This kit comes with HP325 12V DC Air Compressor.
