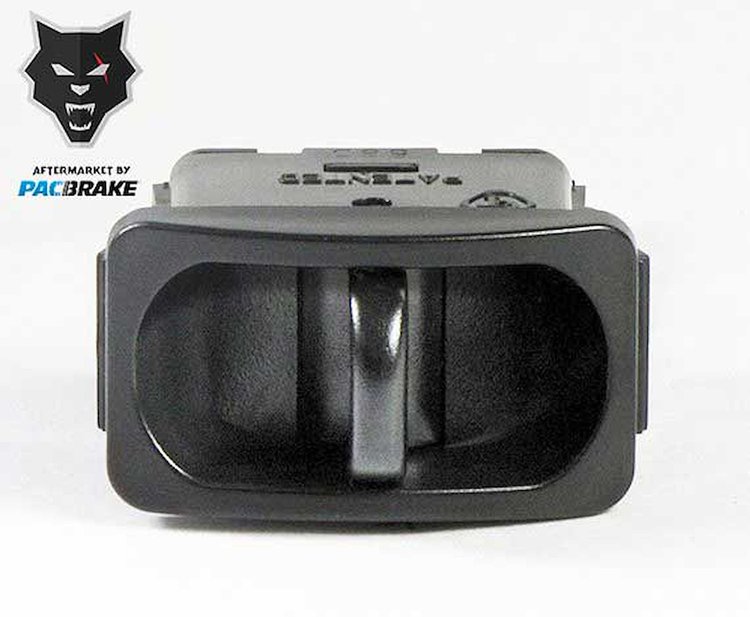

PACBRAKE HP1204 Features:

• 3-way dead center paddle style actuator
• 27.5° throw
• Supply and delivery ports: barbed fitting - accepts 3/16" ID tube - vented to atmosphere through rear of switch
• Fits .89 in. x 1.61 in. [22.6 mm X 40.9 mm] openings
• Rated for steady state direct current (DC) of 7.5 A maximum
• Maximum voltage of 15 VDC at zero current
• Maximum 25% duty cycle - maximum "on" time 60 seconds
• Voltage drop across lead wire terminal will not exceed 0.52 VDC at 7 A direct current
• 24 in. [609 mm] wire leads
