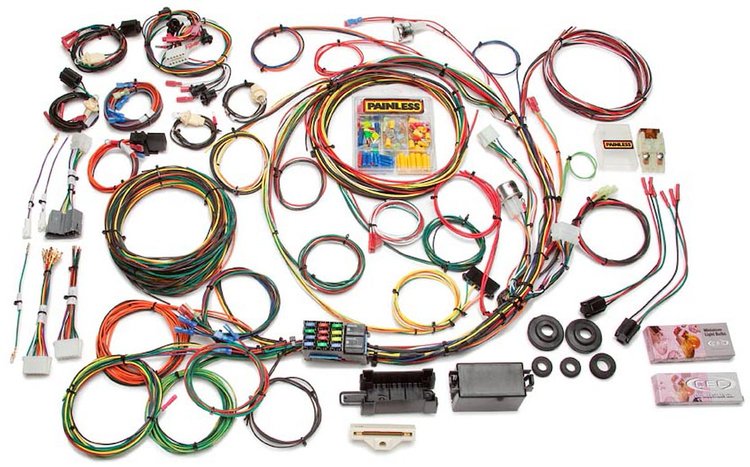

Direct-Fit 21-Circuit Wire Harness Kit for 1967-1977 Ford F-Series Truck Chassis
This 10117 wiring harness contains circuits for:
- A/C & Heat
- Accessory (Relayed)
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Cargo Lamp
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Turn Signals
- Wipers and Washer Pump
* Including Wires For:
- Ammeter
- Brake Warning Light
- Four Wheel Drive Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
Why use a Painless Wiring Harness to wire your vehicle?
The Highest Quality Wire You Can Buy
High-temperature TXL wire has twice the voltage rating of standard general purpose wire and withstands temperatures up to 275°. Plus it resists abrasions, doesn't kink, and routes with ease.
Bulletproof OE-Style Fuse Block
Modern blade-type fuses, labeled wiring harness circuits, and compact corrosion-resistant construction.
Wiring Pre-Terminated to Fuse Block
Each wire is preprinted with the application and GM color-coded.
Superior Circuit Protection
Protected with a 50 amp Maxi-Fuse. Unlike a fusible link that melts in the event of an electrical short, a Maxi-Fuse is a large bladed fuse designed for circuit protection in high-amperage, high-performance applications. Easy to install and replace.
Everything You Need
Nothing but the best is included: fuses, flashers, relay, tach leads, mounting brackets, terminal ends, wire ties, and grommets.
Application Specific
Ready to install with everything your vehicle needs. Just route it through your car, terminate where necessary, and plug it in.
Guaranteed for life!
