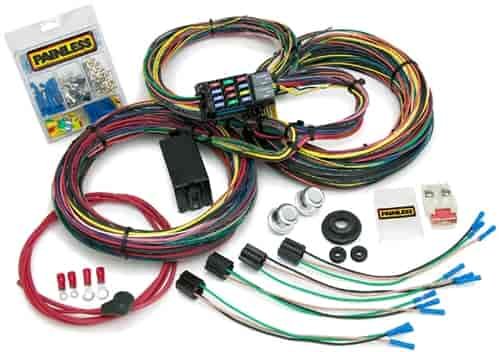

Customizable 21-Circuit Wire Harness 1966-1976 Mopar Muscle Cars

Name: Customizable 21-Circuit Wire Harness 1966-1976 Mopar Muscle Cars
Brand: PAINLESS PERFORMANCE PRODUCTS
SKU: 764-10127
Price: 604.99 USD
Availability: InStock

^$604⁹⁹

1 left in stock

Ships Tomorrow

Lowest Price Guarantee

Mopar Muscle Car Chassis Harness

1966-76 Mopar Muscle Cars

Baracuda, Imperial, Belvedere, Satellite, Charger, GTX, Dart, Road Runner, Challenger, Demon and Duster

Includes: 12 fuses, horn relay, accessory relay, 70 amp Maxi-Fuse, necessary wiring, fuse block mounting bracket, zip ties, grommet, and connectors
Number of Circuits: 21
Harness Length: Universal
Fuse Type: Mini Blade & Maxi Fuse
Firewall Passthrough: Multiple Grommet
Color Code Based: Factory Chrysler
Circuit Designations: Printed on Wires

This harness includes circuits for:
Headlight Switch- Power to headlight switch. Power wires out of headlight switch to head light dimmer switch, tail lights, dash lights and park lights. This harness kit includes the headlight switch connector and terminals.
Dimmer Switch wires include power from headlight switch and power out to low and high beam headlights.
Wiper Switch- Power to wiper switch. Power from wiper switch to wiper and washer motors.
Turn Signal Switch- Power into and out of your column mounted turn signal switch. This harness kit includes new terminals for the turn signal switch. You must retain the factory connector.
Ignition Switch- Power into and out of to fuse block (ignition, crank and accessory)
Brake Switch- Power into and out of brake switch.
Courtesy Lights- Power and ground circuits for dome light activation.
Alternator- Charge wire and alternator field activation wires. (Most alternators can easily be wired up to this Painless harness). Included in kit is a high output alternator wire that allows you to use up to a 140 Amp alternator.
Horn- 20 Amp horn relay mounted to fuseblock
Radio- Harness includes constant B+ (for preset memory) and ignition hot circuits for any aftermarket or factory radio.
Starter- Crank signal wire for starter solenoid.
Engine section wires including electric choke, coil power, coil to tach signal, oil pressure, engine temperature, and A/C compressor clutch control wire.
Headlight section wires including right and left high and low beam headlights, turn signals and park lights. This harness kit includes six two-pin molded rubber connectors to replace the factory park and turn lights inline connectors.
Tail section wires including tail lights, brake lights, turn signal lights, fuel gauge sender, third brake light, and reverse lights.
Dash panel section wires including fuel, temperature, oil pressure, voltage, tachometer, speedometer, high beam and turn indicators and gauge illumination. This harness kit includes 30 lamp socket terminals to be used with the factory lamp sockets.
Also included in kit is a fuseblock mounting bracket, rubber grommet, 4 inch zip ties, 70 Amp maxi fuse and a large assortment of crimp style connectors.
