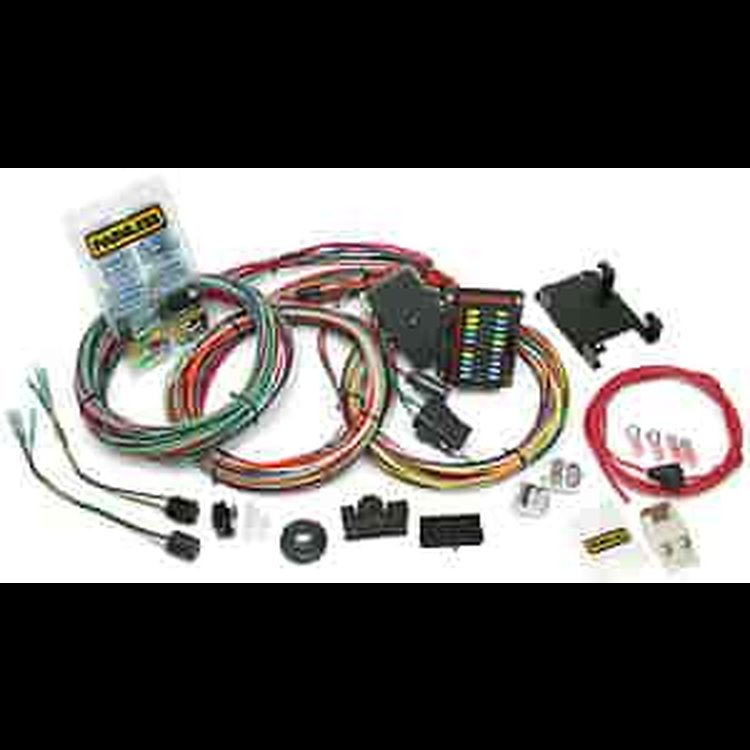

26-Circuit Wire Harness, Universal, Weatherproof

Name: 26-Circuit Wire Harness, Universal, Weatherproof
Brand: PAINLESS PERFORMANCE PRODUCTS
SKU: 764-10140
Price: 514.99 USD
Availability: InStock

^$514⁹⁹

6 left in stock

Ships Today

Lowest Price Guarantee

Universal

Universal
Weatherproof

This weatherproof universal 26 circuit harness can be used to update the wiring in just about any offroad vehicle. On top of the already superior Painless Performance design and materials this tough kit features: weatherproof fuse block with an o-ring sealed cover, weatherproof heat sealed crimp-on terminals, weatherproof horn relay and machined crimped splices with weatherproof shrink tubing. Harness is adaptable to many of the original connector plugs and includes pre-wired plugs for the headlights.

This harness includes circuits for:
1.Headlight Switch- Power to headlight switch. Power wires out of headlight switch to head light dimmer switch, tail lights, dash lights and park lights.

2.Dimmer Switch- wires include power from headlight switch and power out to low and high beam headlights.

3.Wiper Switch- Power to wiper switch. You will need to retain the wires between the wiper switch and your wiper motor.

4.Turn Signal Switch- Power into and out of your column mounted turn signal switch. Also included in this kit are both styles of GM turn switch connectors. Note: these will connect to most aftermarket and factory steering columns.

5.Hazard switch- power into from flasher.

6.Ignition Switch- Power into and out of to fuse block (ignition, crank and accessory)

7.Brake Switch- Power into and out of brake switch. This includes a third brake light wire.

8.Courtesy Lights- Power and ground circuits for dome light activation.

9.Alternator- Charge wire and alternator field activation wires. (Most alternators can easily be wired up to this Painless harness). Included in kit is a high output alternator wire that allows you to use up to a 140 Amp alternator.

10.Horn- 40 Amp horn relay mounted to fuseblock

11.Radio- Harness includes constant B+ (for preset memory) and ignition hot circuits for any aftermarket or factory radio.

12.Starter- Crank signal wire for starter solenoid.

13.Engine section wires including electric choke, coil power, coil to tach signal, oil pressure, engine temperature, hood light and A/C compressor clutch control wire.

14.Headlight section wires including right and left high and low beam headlights, turn signals and park lights.

15.Tail section wires including tail lights, brake lights, turn signal lights, fuel gauge sender, third brake light, and reverse lights.

16.Dash panel section wires including fuel, temperature, oil pressure, voltage, tachometer, speedometer, 4X4 switch, high beam and turn indicators and gauge illumination.

17.Also included in kit is a fuseblock mounting bracket, both styles of GM turn switch connectors, rubber grommets, 4 inch zip ties, 70 Amp maxi fuse and a large assortment of crimp style connectors.

18.Accessory section wires include six (15Amp) fused accessory wires and cigarette lighter
