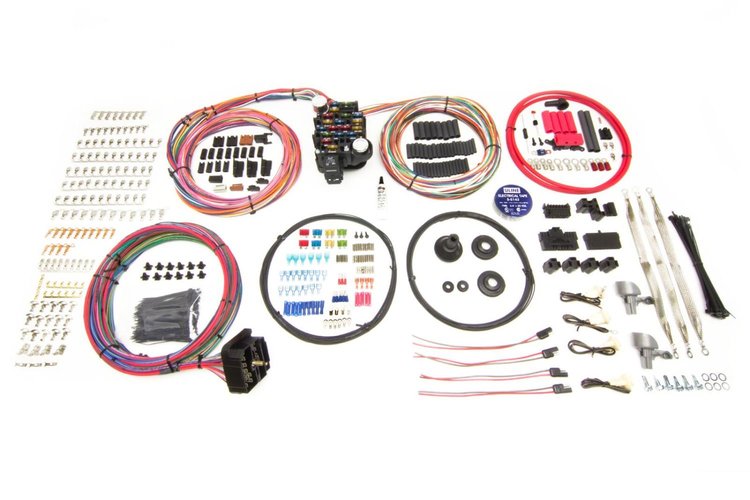

Kit Includes:

• (4) H4 Headlight connectors- to support single (high/low) or dual headlights (separate high beams)
• (2) Turn signal connectors- fits connectors found on factory GM hard wired turn signals
• (4) Molded 1/4 sockets for front & rear marker lights
• (2) HEI distributor connectors (+ and Tach)
• (2) Connectors for factor GM wiper motor
• GM washer pump connector
• Courtesy light sockets
• GM headlight switch connector
• GM dimmer switch connector
• GM brake switch connector
• GM turn signal switch flat connectors (early & late)
• GM ignition switch connectors*
• Neutral Safety Switch connector (column mounted or factory floor shifter mounted)
• Reverse Switch connector (column mounted or factory floor shifter mounted)
• Braided ground straps (for body and core support to frame grounding, also includes (6) self-tapping 1/4" screws for mounting)
• Alternator bag kit with terminals, splices, resistor, diode to connect the alternator. (1) Connector for GM 10si alternator
• Assortment of insulated and non-insulated splices, ring terminals, heat shrink, grommets, cable ties, and cable tie clips.

* Only on GM keyed column harnesses

25-Circuit Harness Specs

Slightly Larger Fuse Block than 23-Circuit Harness Adds Power Window and Power Lock Support. 18 Total Fuses Support 25 Total Circuits, giving more components their own dedicated circuit.

Harness includes circuits for:

• A/C & Heat
• Accessory (Fan Relay Activation, etc.)
• Backup Lights
• Brake Lights
• Charging
• Cigarette Lighter
• Dome / Courtesy Lights
• Electric Choke
• Emergency Flashers
• Fused Power Source
• Grounds – Front and Rear Lights
• Headlights
• Horn (Relay)
• Ignition Coil
• Instrument Panel Lighting and Gauges*
• Park / Marker Lights
• Radio/Clock (Constant and Switched)**
• Relay Activation (Electric Fuel Pump, etc.)
• Starting
• Tail Lights / License Plate Light
• Third Brake Light
• Turn Signal
• Wipers / Washer Pump

* Includes Wires For Fuel Gauge, Oil Gauge, Tachometer, Temperature Gauge, Voltmeter
** Includes Amp Activation Wire
