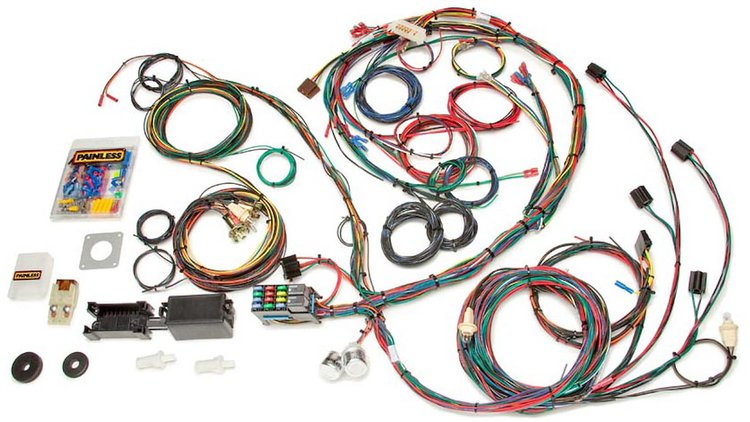

22-Circuit Wire Harness for 1969-1970 Ford Mustang

Vehicle Info Needed

PAINLESS PERFORMANCE PRODUCTSPART NUMBER: 764-20122

22-Circuit Wire Harness for 1969-1970 Ford Mustang

Name: 22-Circuit Wire Harness for 1969-1970 Ford Mustang
Brand: PAINLESS PERFORMANCE PRODUCTS
SKU: 764-20122
Price: 870.99 USD
Availability: InStock

^$870⁹⁹

3 left in stock

Ships Today

Lowest Price Guarantee

Items You Need

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020

^$4⁹⁹$5.99

You Save$1.00

MSD IGNITION

Pro-Crimp Ratcheting Crimping Tool with Interchangeable Jaws

Part Number : 121-35051

^$138⁹⁵

PAINLESS PERFORMANCE PRODUCTS

ClassicBraid Chassis Wire Sleeve Kit

Part Number : 764-70970

^$169⁹⁹

Classic Mustang Chassis Harness

22-Circuit Direct-Fit Chassis Harness

1969-1970 Ford Mustang

22 Circuits - 12 Fuses w/ Horn Relay, Accessory Relay, and Maxi Fuse

This 764-20122 wire harness contains circuits for:

A/C & Heat
Accessory / Cigarette Lighter
Accessory Relay
Backup Lights
Brake Lights
Charging
Courtesy and Dome Lights
Electric Choke
Emergency Flashers
Fused Power Source
Glove Box Light
Headlights
Horn (Relay)
Ignition Coil
Instrument Panel Lighting and Gauges*
Park Lights
Radio/Clock (Constant and Switched)
Starting
Tail Lights and License Plate Light
Trunk Light
Turn Signals
Wipers and Washer Pump

* Including Wires For:

Aftermarket Tachometer
Ammeter
Brake Warning Light
Fuel Gauge
Gear Indicator Light
Oil Gauge
Tachometer
Temperature Gauge
Voltmeter

Tear out that frayed, worn factory wiring and start fresh with one these Painless Ford wiring harnesses. Kits are pre-terminated for the following switches and accessories: Blower Motor, Wipers, Ignition, Headlight Switches, Dimmer, Brake Warning Light and Headlight Bulbs, Additional circuits include Electric Choke, Fuel Pump, Cooling Fan, Digital Radio Memory, Tach Power, Signal and Dash Light, Ignition Ballast Resistor, and Third Brake Light. A Painless wiring harness is the most simple and complete way to rewire a classic Ford.

Part TypeChassis Wiring Harness

Product LinePainless Ford Car Chassis Harnesses

BrandPAINLESS PERFORMANCE PRODUCTS

Package Height5.3

Package Width10.4

Package Length14.4

Weight10.38 PG

Part CategoryPerformance Parts

Vendor Part Number20122

Package Qty1

Package TypeEA

Please click here to download the instructions PDF file
