Product Discontinued
PAINLESS PERFORMANCE PRODUCTSPART NUMBER: 764-30141
F5 Single Fan Controller Control One 70 Amp Cooling Fan
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
F5 Single Fan Controllers
- F5 Single Fan Controller
- Control One 70 Amp Cooling Fan
- 3/8 NPT Temperature Sensor
Features: - Automotive grade, 257°F rated controller.
- Pulse Width Modulation control of one 70 Amp cooling fans.
- Kit includes OEM grade temperature sensor and connector pigtail.
- Gives you complete control over cooling fan start and full on temperatures.
- Kit includes manual override on/off toggle switch. Great feature for 4x4 vehicles during water crossings.
- Senses A/C compressor engagement. Operates fans at 100% when sensed.
- Can monitor square or sine wave signals from a vehicle speed sensor. Easily programs to the vehicle speed you want the cooling fans to shut off above.

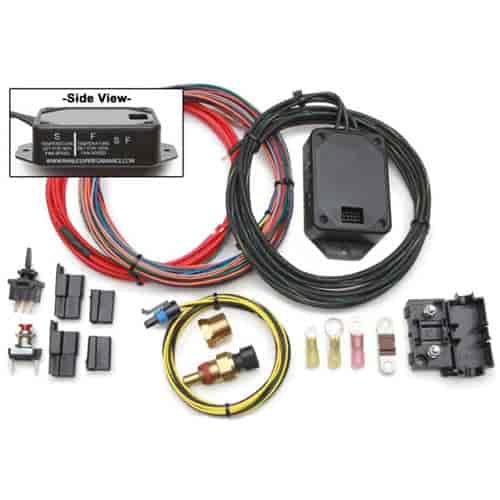

- Painless F5 Fan Controllers are a state-of-the-art fan control system that operate single/dual cooling fans from 50% up to 100% duty cycle. An a/c compressor override runs the fan/fans at 100% duty cycle if air conditioning is kicked on. Each kit includes an under hood rated solid state pulse width modulation controller, 3/8 NPT threaded temperature sensor, large gauge fan wires and a labeled vehicle integration wire harness, mounting hardware, 70 Amp fuse and connectors. Kit also includes a three position toggle switch that gives you manual control of the cooling fans; position one is 100% fan on, position two is normal operation and position three is 0% fan or fan off. Also included is a push button switch which is used to set the vehicle speed at which you like the cooling fans to shut off above.
Part TypeElectric Fan Controller
Product LinePainless --OLD-- F5 Fan Controllers
BrandPAINLESS PERFORMANCE PRODUCTS
Package Height4.2
Package Width7.0
Package Length13.0
Weight2.45 PG
Part CategoryPerformance Parts
Vendor Part Number30141
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
