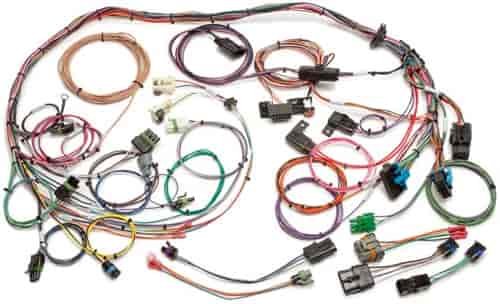

EFI Wiring Harness 1986-1993 GM Camaro, Firebird, Corvette, Full-Size Truck 4.3L, 5.0L, 5.7L, 7.4L V8

Name: EFI Wiring Harness 1986-1993 GM Camaro, Firebird, Corvette, Full-Size Truck 4.3L, 5.0L, 5.7L, 7.4L V8
Brand: PAINLESS PERFORMANCE PRODUCTS
SKU: 764-60101
Price: 424.99 USD
Availability: InStock

^$424⁹⁹

3 left in stock

Ships Today

Lowest Price Guarantee

EFI Wiring Harness

1986-93 GM 4.3/5.0/5.7/7.4L TBI

EFI Wiring Harness

1986-1993 GM Camaro, Firebird, Corvette, Full-Size Truck 4.3L, 5.0L, 5.7L, 7.4L V8

Throttle Body Injected and Cross Fire Injected

Standard Length

200-4R, 700-R4 and Other Non-Electronic Transmissions

This 764-60101 wiring harness has a length of 4 ft.* Between Engine and ECM, and contains circuits for:

A/C Power
Alternator
Brake Switch
Data Link Connector
Distributor
ECM
EGR Valve
Electronic Spark Control Module
Engine Coolant Temperature
Fuel Pump
Fuel Pump Relay
Fused System Power
Grounds
Idle Air Control
Ignition Switch Signal (Fused)
Ignition Timing Setting
Injectors
Knock Sensor
Malfunction Indicator Lamp
MAP Sensor
O2 Sensor
Oil Pressure
Park/Neutral Indicator Switch
Starter
Throttle Position Sensor
Torque Converter Clutch
VSS

* To mount the ECM under or behind the passenger seat, please use 764-60201 (8 ft. length between engine and ECM).

Notes:
This 60101 harness will not work with a 1994 or -1995 ECM and will not operate a 4L60E transmission.

Requires the following mating parts: ECM #1227747, #16121154, or #88999146. Calpack #16060836, and a prom to match you engine: (4.3L) #16082087, (5.0L) #16139492, (5.7L) #16139566, (7.4L) #16128359. This Prom does not control any transmission or torque converter functions.

Part TypeWiring Harness

BrandPAINLESS PERFORMANCE PRODUCTS

Package Height5.3

Package Width10.8

Package Length14.5

Weight4.665 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number60101

Package Qty1

Package TypeEA
