Vehicle Info NeededPAINLESS PERFORMANCE PRODUCTSPART NUMBER: 764-60508

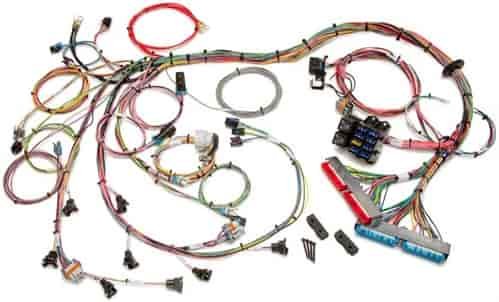

EFI Wiring Harness 1998-2004 GM LS1/LS6
$56999
1 left in stock
Ships Today
Lowest Price GuaranteeEFI Wiring Harness1999-2002 GM LS1/LS6 Mechanical Throttle Body
- EFI Wiring Harness
- 1998-2004 GM LS1/LS6
- With 4L60E or T-56 Transmission
- Mechanical Throttle Body
For installations of a mechanical throttle body LS1 / LS6 engine with a 4L60E or T-56 transmission. These engines and transmissions were factory equipped in 1999 - 2002 Chevrolet Camaro. This harness may also be used when a throttle by wire LS1 or LS6 from a Corvette is converted to mechanical throttle. The 60508 harness includes all connections for fuel injection and transmission operation: ECM, TPS, IAC, CTS, IAT, MAF, MAP, Injectors, Coils, CMP, CKP, Knock, VSS, Transmission, Front Bank 1 & 2 O2 Sensors. Harness incorporates its own 8 circuit fuseblock with ignition relays and connection to factory style fuel pump relay. Harness does not include any emissions related connections. This standard length harness allows four feet from the back of the intake manifold to where the fuseblock and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.
Part TypeEngine Wiring Harness
BrandPAINLESS PERFORMANCE PRODUCTS
Package Height5.3
Package Width10.4
Package Length14.6
Weight8.0 PG
Part CategoryPerformance Parts
Part FitmentSemi Universal
Vendor Part Number60508
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
