Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Ford 3 Valve Modular Engine

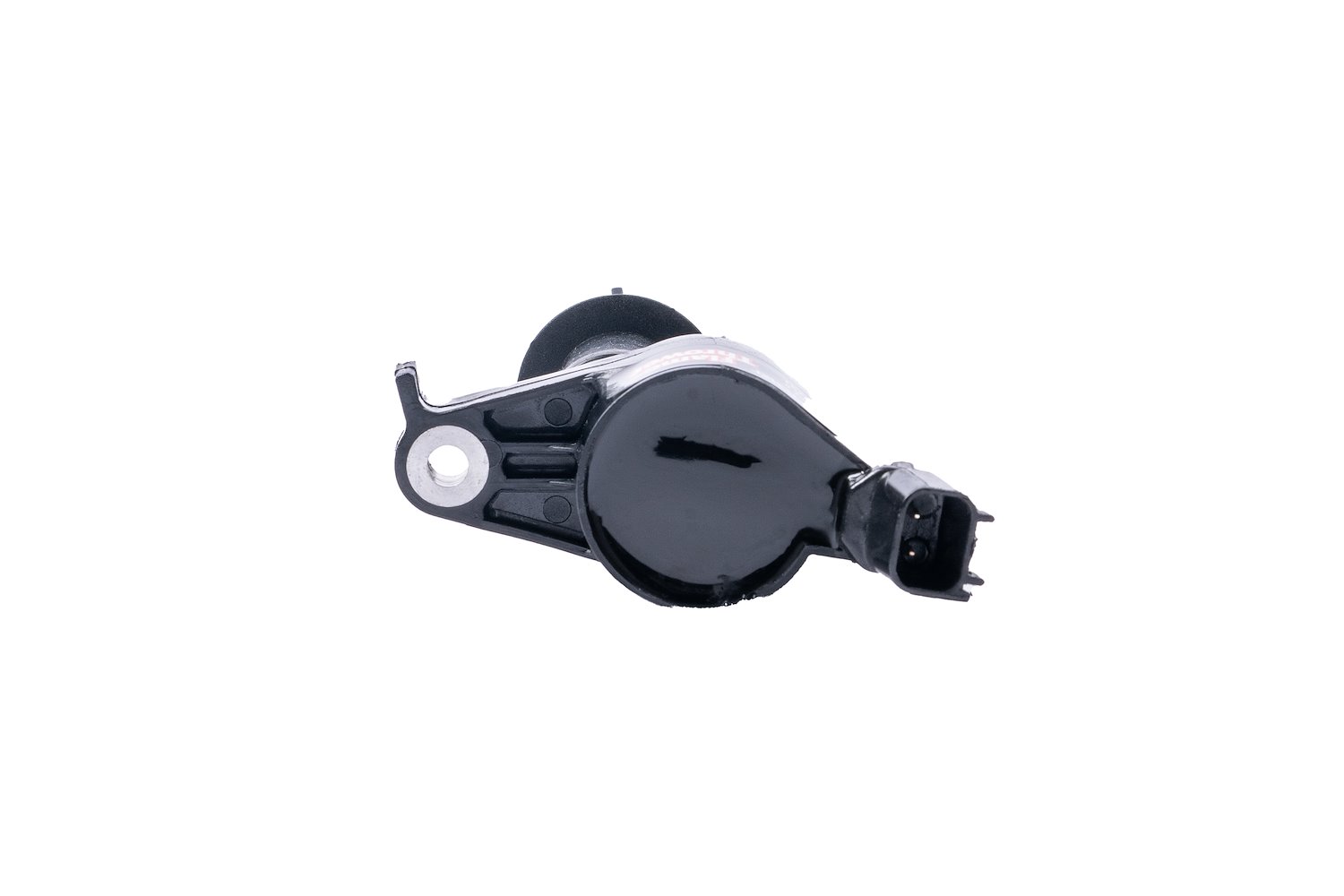

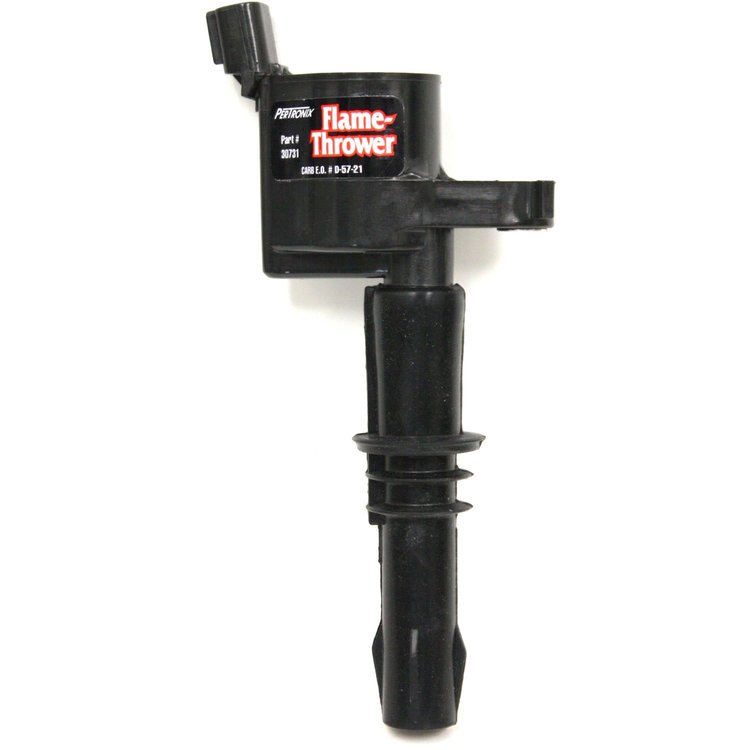

- Flame Thrower Coil On Plug
- Ford 4.6/5.4L 3V Engines
- Carb Approved D-57-21
- 1/pkg.
Features: - Optimized coil design yields at least 15% more energy available for the spark
- Provides the spark energy throughout the RPM range and with no energy degradation up to 11,000 RPM
- Moisture resistant construction ensures long life in harsh environments
- Plated Copper terminals for added current conduction
- High-temp boot sustains seal and form
- Epoxy molded for shock an dvibration resistance
- Ferrite suppressed secondary path reduces radiated electrical energy
- Direct OEM replacementLegal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)
Flame-Thrower Coils for 2, 3 and 4 valve Ford Modular Engines feature an optimized coil design which increases the spark energy by 15% (30,000 Volts!) over the OEM coils, with no energy degradation up to 11,000 RPM. Coils are epoxy molded to prevent premature failure from moisture or winding fatigue. Direct replacement for Ford Mustang, Crown Victoria, E-Series Vans, and F-Series Pickups. Available individually or in sets of 8.
Show More
Features:
- Optimized coil design yields at least 15% more energy available for the spark than the most common OEM coils.
- Provides the spark energy throughout the RPM range and with no energy degradation up to 11,000 engine RPMs.
- Moisture resistant construction ensures long life in harsh environments.
- Plated Copper terminals for added current conduction.
- High-temp boot sustains seal and form.
- Epoxy molded for shock and vibration resistance.
- Ferrite suppressed secondary path reduces radiated electrical energy.
- Direct OEM replacement.
Part TypeIgnition Coil
Product LinePertronix Flame Thrower Ford Modular Coil On Plug
BrandPERTRONIX
Package Height2.5
Package Width2.5
Package Length7.5
Weight1.52 PG
Part CategoryPerformance Parts
Carb Eo NumberD-57-21 (pdf)
Coil Wire AttachmentFemale/Socket
Coil StyleCoil pack
QuantitySold individually
Ballast Resistor IncludedNo
Maximum Voltage30,000 V
Title (Custom)Flame-Thrower Coil 2004-2008 Ford 4.6L/5.4L Modular 3-Valve COP
Mounting Bracket IncludedNo
Coil ColorBlack
Coil Wire IncludedNo
Part FitmentSemi Universal
Coil Internal ConstructionEpoxy
Vendor Part Number30731
Package Qty1
Package TypeEA
