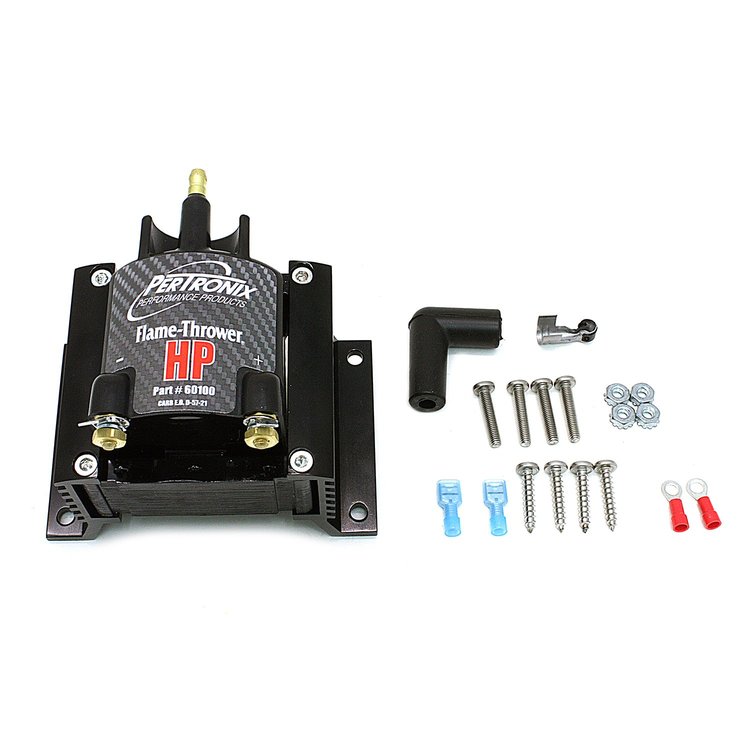

Flame-Thrower HP E-Core Coil 0.2 Ohms

Name: Flame-Thrower HP E-Core Coil 0.2 Ohms
Brand: PERTRONIX
SKU: 751-60100
Price: 139.99 USD
Availability: InStock

^$139⁹⁹

Ships on Nov 02, 2026

Lowest Price Guarantee

0.2 Ohms
50,000 Volts
100:1 Turn Ratio
Carb Approved D-57-21

Length: 4.0"
Width: 4.75"
Height: 3.75"
Primary Resistance: 0.2 Ohms
Secondary Resistance: 1.38k Ohms
Primary Inductance: 7.0 mH

Pertronix Flame-Thrower HP E-Core Coils were specifically designed for use with the Pertronix Digital HP Ignition. The HP E-Core Coil contains a larger epoxy encapsulated coil body, more substantial steel E-core, and a 6063 T5 aluminum heat sink. These features enable the highly-efficient coils to meet the demands of high RPM CD systems. Extended primary terminal spacing and added secondary terminal shielding prevent potentially damaging spark arc-over.

Features

50,000 volts
Highly efficient E-core design
Vacuum potted body for longer life and increased reliability
6063 T5 aluminum heat sink with black anodized corrosion resistant finish
Precision machined male high tension terminal and brass primary terminals
Legal in all 50 states and Canada (C.A.R.B. E.O. #D-57-21)
Limited 90 Day Warranty

Part TypeIgnition Coil

Product LinePertronix Flame-Thrower HP E-Core Coils

BrandPERTRONIX

Package Height4.5

Package Width6.4

Package Length7.3

Weight4.34 PG

Part CategoryPerformance Parts

Part FitmentSemi Universal

Vendor Part Number60100

Package Qty1

Package TypeEA

Some parts are not legal for use in California or other states with similar laws / regulations
