Flame-Thrower E-Core Coil Ford TFI
InfoVehicle Info Needed
PERTRONIXPART NUMBER: 751-D3003

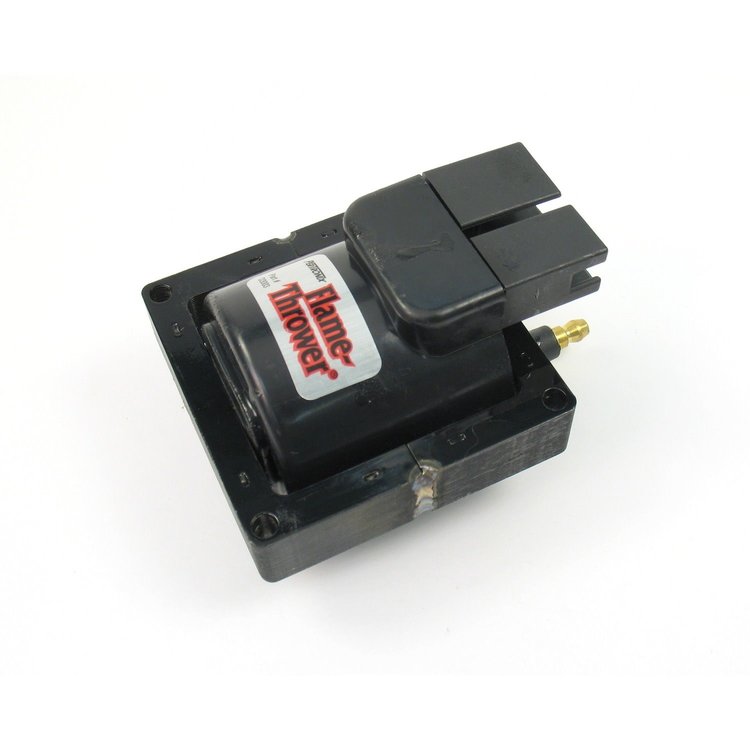

Flame-Thrower E-Core Coil Ford TFI

$8249$91.65You Save$9.16
ShippingShips on 11/24/2026
Lowest PriceLowest Price Guarantee

Items You Need

Dielectric Grease, 1 oz. Tube

JEGS

Dielectric Grease, 1 oz. Tube

Part Number : 555-28020
$499$5.99
You Save$1.00
Spark Guard Dielectric Grease Resealable Container

MSD IGNITION

Spark Guard Dielectric Grease Resealable Container

Part Number : 121-8804
$4159$46.21
You Save$4.62

Flame-Thrower E-Core HEI Coil
  • Ford TFI
    • Flame-Thrower E-Core Coil
    • Ford TFI
    • 45,000 Volts
    • 0.32 ohm
    • Carb Approved D-57-21

      Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21)

      Fits Applications Revision:
    • Ford F Super Duty Base 1990-93
      Pertronix Flame-Thrower E-Core Coils feature optimized winding design to maximize spark gap current and availble voltage. When teamed with Flame-Thrower Ignition Modules they produce 100% more energy accros the spark plug gap compared to the OEM coil.

      Features:
    • 50,000 Volts
    • Ultra low primary resistance values
    • Legal in all 50 states and Canada (C.A.R.B. # D-57-21)
    Part TypeIgnition Coil
    Product LinePertronix Flame-Thrower E-Core Coils
    BrandPERTRONIX
    Package Height4.8
    Package Width6.4
    Package Length6.5
    Weight2.0 PG
    Part CategoryPerformance Parts
    Carb Eo NumberD-57-21 (pdf)
    Primary Resistance0.320 ohms
    Coil Wire AttachmentMale/HEI
    Coil StyleE-core
    PositionN/A
    QuantitySold individually
    Overall Length3.1 in (78.7 mm)
    Ballast Resistor IncludedNo
    Maximum Voltage45,000 V
    Turns Ratio85:01:00
    Peak Current7.9 amps
    Coil ShapeSquare
    Title (Custom)PerTronix D3003 Flame-Thrower Ford TFI Coil 50,000 Volt
    Mounting Bracket IncludedNo
    Inductance2.8 mH
    Coil ColorBlack
    Coil Wire IncludedNo
    Spark Duration1.5 mS
    Product Height4.3 in (109.22 mm)
    Secondary Resistance6.0K ohms
    Part FitmentSemi Universal
    Coil Internal ConstructionMolded
    Product Width2.8 in (71.12 mm)
    Vendor Part NumberD3003
    Package Qty1
    Package TypeEA
