Vehicle Info NeededPERTRONIXPART NUMBER: 751-D300811

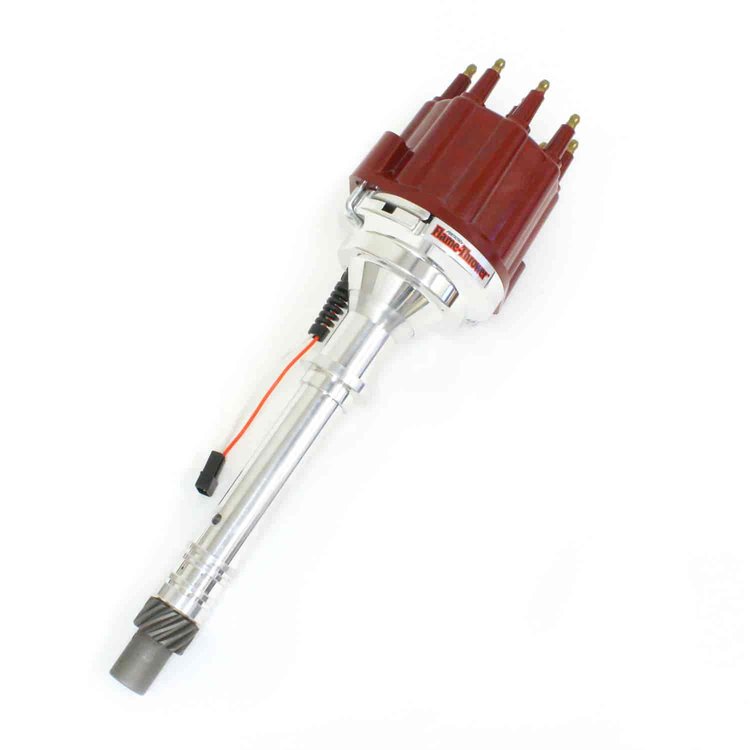

Magnetic Trigger Billet Distributor Small Block/Big Block Chevy
$29696$329.96You Save$33.00
Ships on 09/04/2026
Lowest Price GuaranteeGM
Magnetic Trigger Billet DistributorSmall Block/Big Block Chevy Non Vacuum Adavance Magnetic Trigger Red
PERTRONIX INC. D300811 Features:
If you plan to run our Digital HP or Second Strike Ignition box, our Magnetic Trigger Electronic Distributor is an ideal candidate featuring an adjustable mechanical advance and simple trigger connection. Magnetic Triggaer Billet Distributors feautre vacuum advance canisters includinng optional lock out for ease of compatibility with your desired ignition system.- Precision magnetic pickup coil and reluctor offer extremely accurate signaling at low and high RPM.
- Specially engineered reluctor made from lightweight FC-0208 alloy offers superior dimensional stability for symmetrical spark separation.
- Overmolded magnetic pickup coil supports windings while providing excellent resistance to corrosion.
- Easy wiring with standard Tyco Mate-N-Lok? connector works with most ignition system harnesses.
- Compatible with most capacitive discharge ignition boxes.
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeDistributor
BrandPERTRONIX
Package Height5.7
Package Width7.1
Package Length19.5
Weight5.41 PG
Part CategoryPerformance Parts
Marine UseNo
Housing FinishNatural
Housing Materialbillet aluminum
Distributor Cap ColorRed
Ignition Box RequiredYes
QuantitySold individually
Title (Custom)Electronic Dist Billet Magnetic Trigger Chevy SB/BB Red Male Cap
Computer-Controlled CompatibleNo
Trigger StyleMagnetic
Distributor Gear RotationStandard
Cap StyleMale/HEI
Part FitmentSemi Universal
Slip CollarNo
Mechanical Tach DriveNo
Gear MaterialIron
Advance TypeMechanical
Vendor Part NumberD300811
Package Qty1
Package TypeEA
