Made in USA

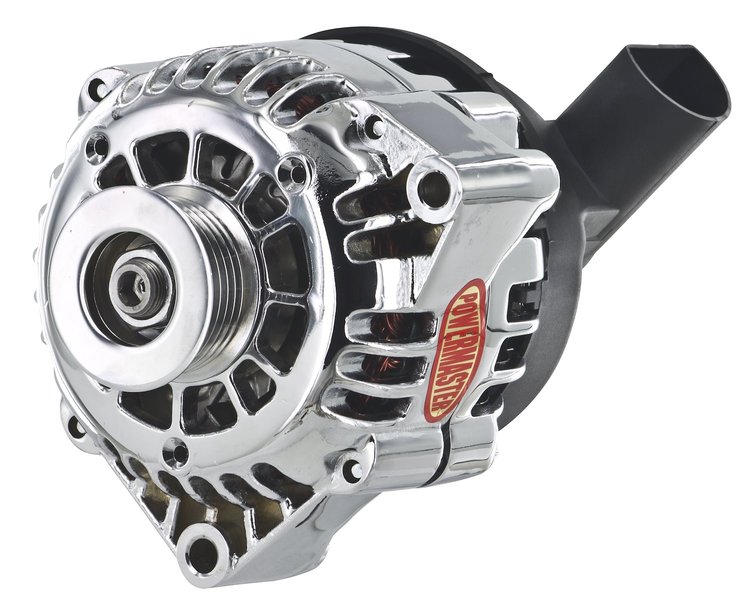

GM CS130D 5.31" Rear Post Alternator Chrome
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-18242

GM CS130D 5.31" Rear Post Alternator Chrome

$24599
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

GM CS130D 120 Amp 5.31" Rear Post Alternators
    GM CS130D 5.31" Rear Post Alternator
  • Chrome
  • 120 Amp
  • Serpentine 6-Groove Pulley
  • OEM Wiring With PLIS Style Plug & One Wire
  • Camaro/Firebird

    Note: Charge Wire Not Included.

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • High Idle Output
  • Dual Internal Fans
  • High Efficiency
  • Excellent Cooling
  • OE or 1-Wire Hookup Note: Charge Wire Not Included.


Part TypeAlternator
Product LinePowermaster GM CS130D Style Alternators
BrandPOWERMASTER
Package Height7.2
Package Width7.7
Package Length9.3
Weight12.78 PG
Part CategoryPerformance Parts
Voltage Compatibility12
One-Wire CapableYes
Pulley IncludedYes
Alternator Brackets IncludedNo
Pulley StyleSerpentine Pulley
Advertised Amperage Output120 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM CS130D
MountingWith Mounting Kit
Amperage120 AMP
Alternator FinishChrome plated
Belt IncludedNO
Regulator StyleInternal
Vendor Part Number18242
Package Qty1
Package TypeEA
