Made in USA

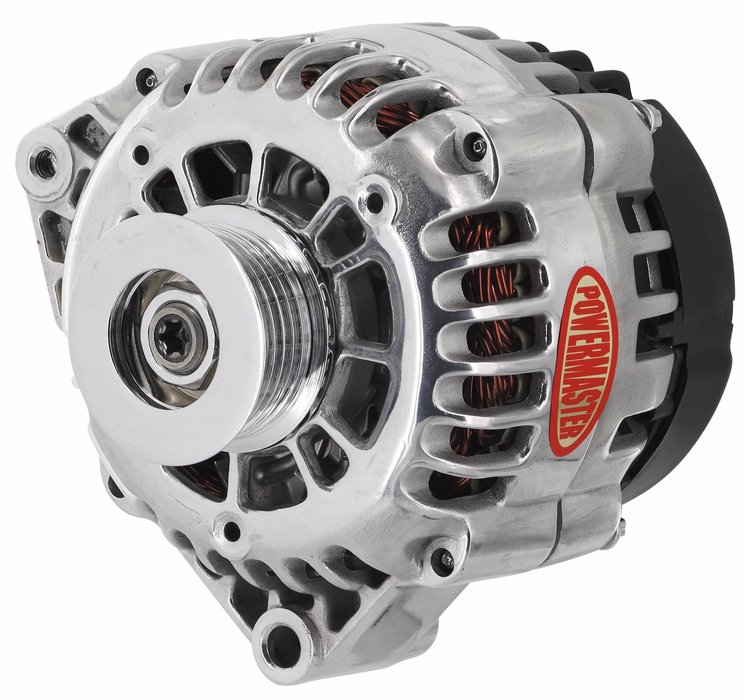

GM CS130D Offset Left Mount 4.17" Alternator Polished
Product Discontinued
POWERMASTERPART NUMBER: 713-28208

GM CS130D Offset Left Mount 4.17" Alternator Polished

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GM CS130D 120 Amp Offset Left Mount 4.17" Alternators
    GM CS130D Offset Left Mount 4.17" Alternator
  • Polished
  • 120 Amp
  • Mounting Position: 2:00
  • Serpentine 6-Groove Pulley
  • OEM Wiring With PLIS Style Plug

  • Highly Efficient
  • Dual Internal Fans
  • Internally Regulated
  • Gold Battery Post
  • Proof Of Performance Tags

    Note: Charge Wire Not Included.

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • High Idle Output
  • Dual Internal Fans
  • High Efficiency
  • Excellent Cooling
  • OE or 1-Wire Hookup Note: Charge Wire Not Included.


Part TypeAlternator
Product LinePowermaster GM CS130D Style Alternators
BrandPOWERMASTER
Package Height7.7
Package Width7.7
Package Length10.3
Weight12.9 PG
Part CategoryPerformance Parts
Voltage Compatibility12
One-Wire CapableYes
Pulley IncludedYes
Alternator Brackets IncludedNo
Pulley StyleSerpentine Pulley
Advertised Amperage Output115 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM CS130D
MountingOEM
Amperage115 AMP
Alternator FinishPolished
Belt IncludedNO
Regulator StyleExternal
Vendor Part Number28208
Package Qty1
Package TypeEA
