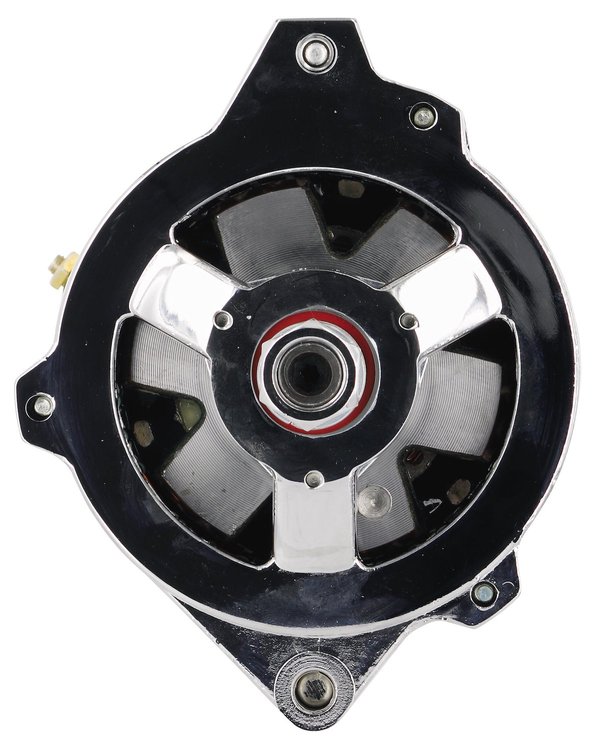

CS130 Straight Mount 6.14" Side Post Alternator 155 Amp
- CS130 Straight Mount 6.14" Side Post Alternator
- 155 Amp
- With Side Battery Post
- Without Fan & Pulley
- Chrome
Notes: - 713-374011MR is the High Output Replacement for MARCH P572A / P574A
- Charge Wire Not Included
GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.
Show More
Features:
- Excellent output at idle
- Internal and external fans
- Highly efficient
- Highest output small case Delco
- Gold battery post
- Proof-of-Performance Tag
- Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators
105A Specifications
- 80A @ 2,400 RPM @ 13.2 VDC @ 77F
- Operating Range: -40C to 150C
- Maximum RPM: 18,000
140A Specifications - 90A @ 2,400 RPM @ 13.2 VDC @ 77F
- Operating Range: -40C to 150C
- Maximum RPM: 18,000
Alternator Plug Type
