Made in USA

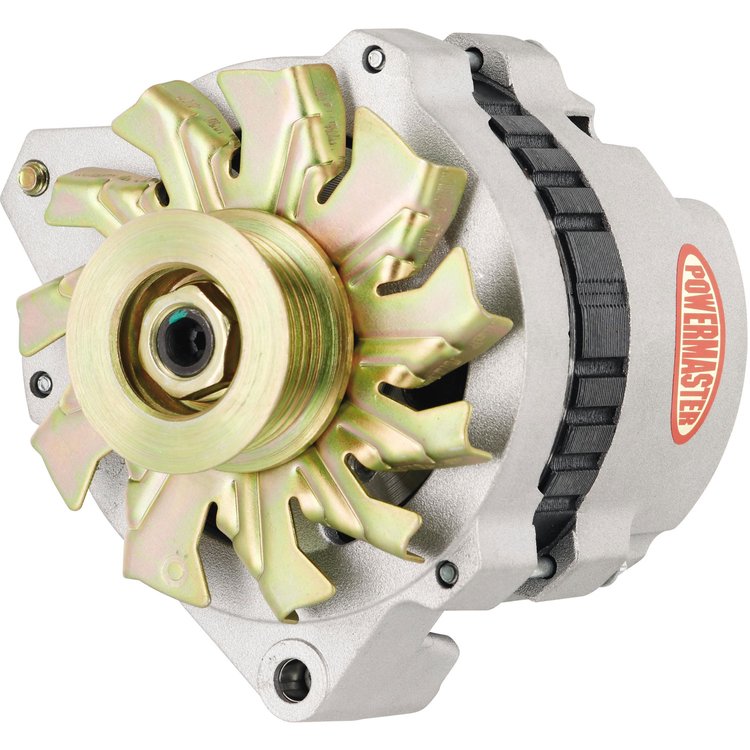

CS130 Style Alternator 140 Amps
Product Discontinued
POWERMASTERPART NUMBER: 713-37861-362

CS130 Style Alternator 140 Amps

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CS130 Style 140 Amp Plug-In Alternators
  • With Rear Output Post
  • 6 Groove Pulley
  • Left Ear Mount
    • CS130 Style Alternator
    • 140 Amps
    • Plug-In With Rear Output Post
    • 6 Groove Pulley
    • Left Ear Mount
    • Chrome
    • Includes Pulley Cover & Baffle

      This CS-130 Delco Series alternator has the mounting ear off-set to the left. Available in 105 amp or 140 amp versions, you can choose between a 1-wire (needs only the output cable) or plug-in that will use a factory regulator harness. Also available is Powermaster's unique side output post for those applications that need clearance at the rear of the alternator.

      Note: Charge Wire Not Included.

    GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

    Show More

    Features:

    • Excellent output at idle
    • Internal and external fans
    • Highly efficient
    • Highest output small case Delco
    • Gold battery post
    • Proof-of-Performance Tag
    • Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators

    105A Specifications

    • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
    • Operating Range: -40C to 150C
    • Maximum RPM: 18,000

      140A Specifications
    • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
    • Operating Range: -40C to 150C
    • Maximum RPM: 18,000

    Alternator Plug Type

    Product LinePowermaster GM CS130 Style Alternators
    BrandPOWERMASTER
    Package Height7.13
    Package Width7.25
    Package Length8.13
    Weight11.76 PG
    Part CategoryPerformance Parts
    Package Qty1
    Package TypeEA
