Vehicle Info NeededPOWERMASTERPART NUMBER: 713-482038SPL

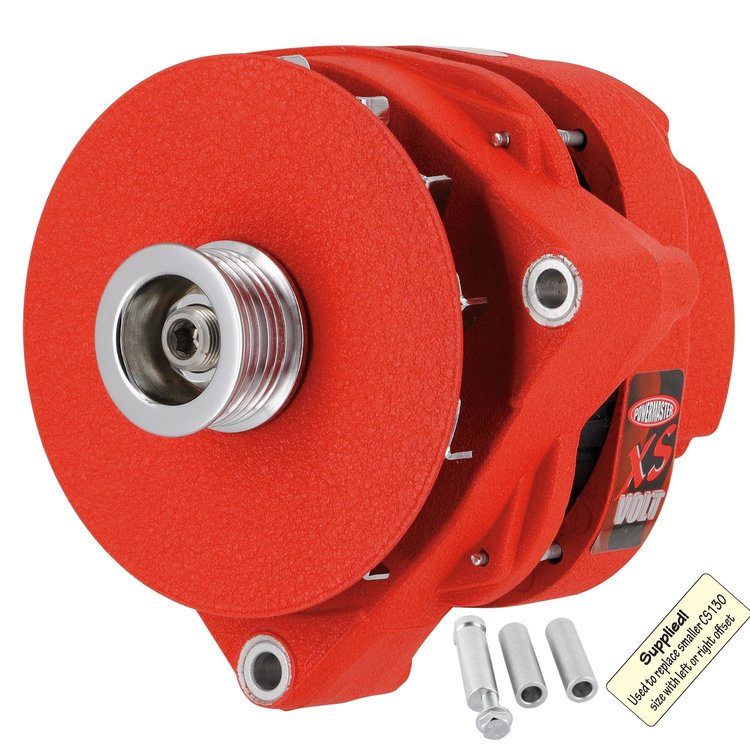

XS Volt CS144 Style SPL Competition Alternator Red Wrinkle
$49599
Ships on 09/09/2026
Lowest Price GuaranteeCS144 Style SPL Competition Alternators300 Amp Dual Spool Ear Mounting
- XS Volt CS144 Style SPL Competition Alternator
- Not Intended for Street Use
- 300 Amp
- Offset Mount
- Red Wrinkle
- Highest Output At Idle
- Excellent Idle Output
- Heavy Duty Regulator And Rectifier
- Gold Battery Post
- Heavy Duty Bearing
- Proof Of Performance Tag
Powermaster GM CS144 Style Alternators have a straight across ear mounting configuration that is 7.2" center-to-center between the mounting ears. This is only 5/8" wider than the earlier 10SI, 12SI, and CS-130 series so, if you do not have a fixed mounting bracket, it will make a great high output upgrade for those alternators. Made in the U.S.A.
Features:
- High Output at Idle
- Fan Baffle for Superior Cooling
- Heavy-duty regulator and rectifier
Show More
- Gold battery post
- Proof-of-Performance Tag
- Heavy-duty bearing
Note: Charge Wire Not Included.
| Alternator Plug Type |
 |
Part TypeAlternator
Product LinePowermaster GM CS144 Style Alternators
BrandPOWERMASTER
Package Height7.3
Package Width7.7
Package Length9.3
Weight15.65 PG
Part CategoryPerformance Parts
Voltage Compatibility12/16
One-Wire CapableYes
Pulley IncludedYes
Alternator Brackets IncludedNo
Pulley StyleSerpentine Pulley
Advertised Amperage Output300 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM CS144
MountingWithout Mounting Kit
Amperage300 AMP
Alternator FinishRed powdercoated
Belt IncludedNO
Regulator StyleInternal
Vendor Part Number482038SPL
Package Qty1
Package TypeEA
