Made in USA

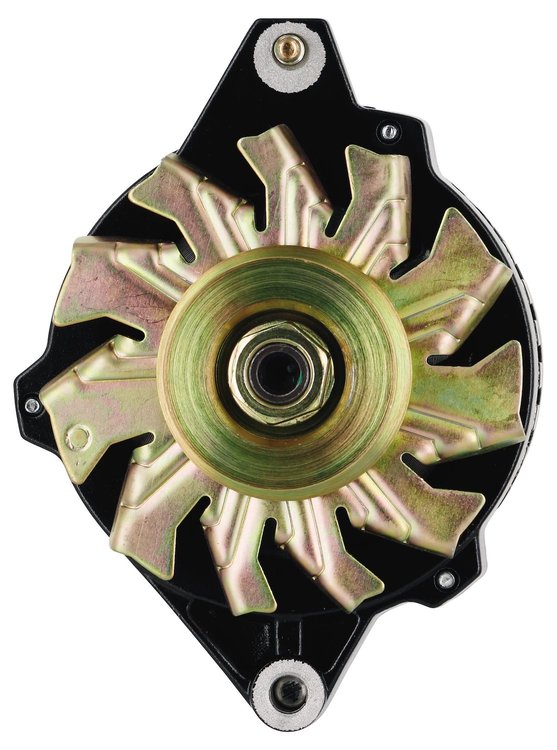

CS130 Straight Mount 6.61" Alternator 140 Amp
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-578021

CS130 Straight Mount 6.61" Alternator 140 Amp

$21899
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Alternator Ground Wire Kit [10 Gauge]

JEGS

Alternator Ground Wire Kit [10 Gauge]

Part Number : 555-10141
$560$6.99
You Save$1.39
Alternator Discharge Wiring Kit 8 Gauge

JEGS

Alternator Discharge Wiring Kit 8 Gauge

Part Number : 555-10512
$2999$32.99
You Save$3.00
High-Output Alternator Wiring Kit

JEGS

High-Output Alternator Wiring Kit

Part Number : 555-10510
$3399$37.99
You Save$4.00
50 Amp Fuse with Block & Cover Made in the USA

JEGS

50 Amp Fuse with Block & Cover Made in the USA

Part Number : 555-10520
$1279$15.99
You Save$3.20

CS130 140 Amp Straight Mount 6.61" Alternators
    CS130 Straight Mount 6.61" Alternator
  • 140 Amp
  • 1v Pulley
  • Black

    This CS-130 Delco Series alternator is the middle of the 3 straight ear versions with a distance of 6.61" center-to-center between the mounting ears. This CS model will directly replace the 10SI or 12SI alternators that also have a 6.61" distance.

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • Excellent output at idle
  • Internal and external fans
  • Highly efficient
  • Highest output small case Delco
  • Gold battery post
  • Proof-of-Performance Tag
  • Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators

105A Specifications

  • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

    140A Specifications
  • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

Alternator Plug Type

Part TypeAlternator
Product LinePowermaster GM CS130 Style Alternators
BrandPOWERMASTER
Package Height7.2
Package Width7.6
Package Length9.3
Weight11.95 PG
Part CategoryPerformance Parts
Voltage Compatibility12
One-Wire CapableYes
Pulley IncludedYes
Alternator Brackets IncludedNo
Pulley StyleV-Belt Pulley
Advertised Amperage Output140 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM CS130
MountingOEM
Amperage140 AMP
Alternator FinishBlack powdercoated
Belt IncludedNO
Part FitmentDirect Fit
Regulator StyleInternal
Vendor Part Number578021
Package Qty1
Package TypeEA
