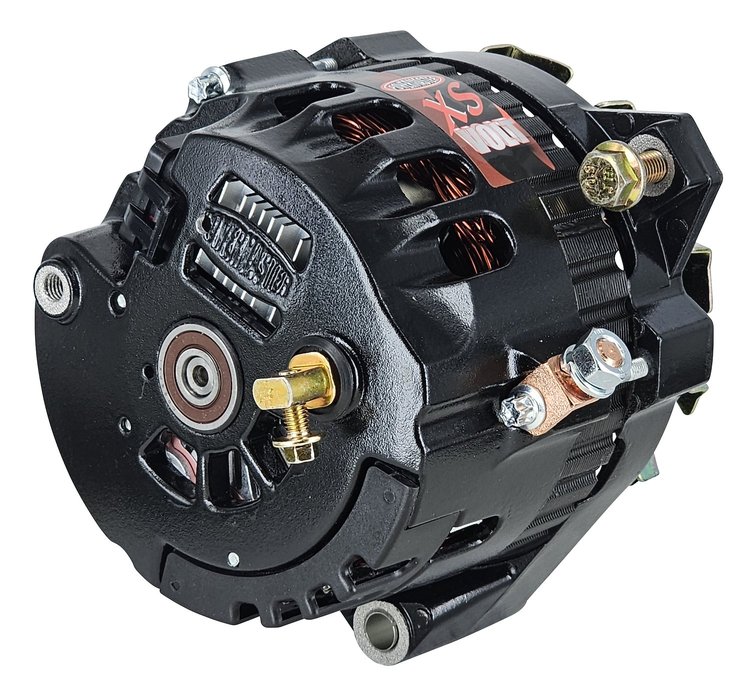

XS Volt CS130 Offset Left Mount 4.63" Rear Post Alternator 140 Amp
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-578618

XS Volt CS130 Offset Left Mount 4.63" Rear Post Alternator 140 Amp

$24599
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

CS130 140 Amp Offset Left Mount 4.63" Rear Post Alternators
    XS Volt CS130 Offset Left Mount 4.63" Rear Post Alternator
  • 140 Amp
  • 1v Pulley
  • Black

  • Newly Designed Voltage Regulator
  • Change Voltage Adjustment While Running
  • Power Saving Mode; 2 Operating Levels
  • Indicator Light Drive
  • Entire Circuit Sealed In Epoxy

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • Excellent output at idle
  • Internal and external fans
  • Highly efficient
  • Highest output small case Delco
  • Gold battery post
  • Proof-of-Performance Tag
  • Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators

105A Specifications

  • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

    140A Specifications
  • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

Alternator Plug Type

Part TypeAlternator
Product LinePowermaster GM CS130 Style Alternators
BrandPOWERMASTER
Package Height7.5
Package Width7.5
Package Length9.0
Weight10.5 PG
Part CategoryPerformance Parts
MountingWithout Mounting Kit
Amperage140 AMP
Vendor Part Number578618
Package Qty1
Package TypeEA
