Made in USA

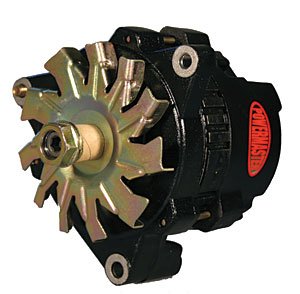

Small Case GM CS130 Delco Alternator Late Model
Product Discontinued
POWERMASTERPART NUMBER: 713-58107

Small Case GM CS130 Delco Alternator Late Model

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CS130 140 Amp Alternator
    Small Case GM CS130 Delco Alternator
  • Late Model
  • 140 Amp
  • Black

  • Excellent Output At Idle
  • Internal And External Fans
  • Highly Efficient
  • Highest Output Small Case Delco
  • Gold Battery Post
  • Smooth Back
  • Proof Of Performance Tag

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • Excellent output at idle
  • Internal and external fans
  • Highly efficient
  • Highest output small case Delco
  • Gold battery post
  • Proof-of-Performance Tag
  • Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators

105A Specifications

  • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

    140A Specifications
  • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

Alternator Plug Type

Product LinePowermaster GM CS130 Style Alternators
BrandPOWERMASTER
Package Height7.5
Package Width7.7
Package Length9.3
Weight12.17 PG
Part CategoryPerformance Parts
Package Qty1
Package TypeEA
