Made in USA

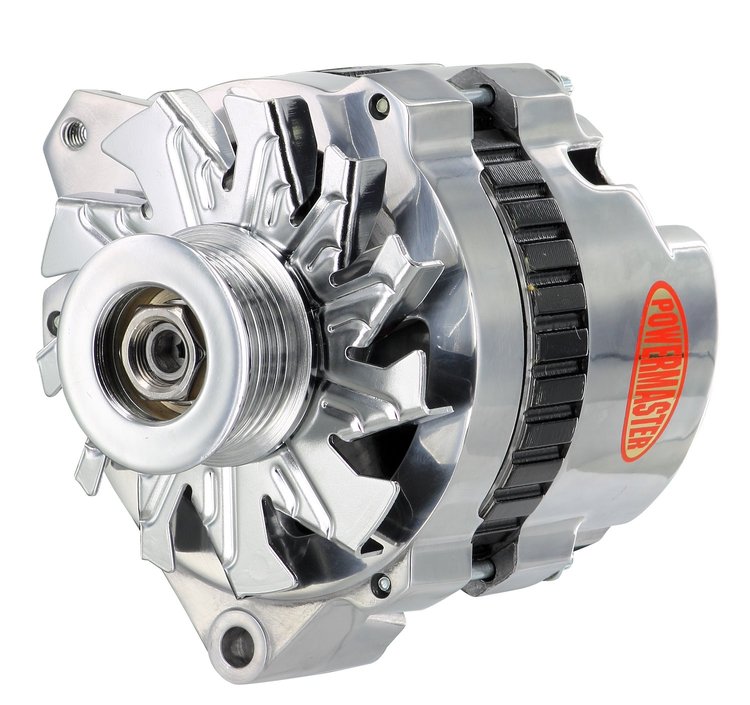

CS130 Offset Left Mount 4.63" Side Post Alternator 140 Amp
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-67461

CS130 Offset Left Mount 4.63" Side Post Alternator 140 Amp

$26999
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

CS130 140 Amp Offset Left Mount 4.63" Side Post Alternators
    CS130 Offset Left Mount 4.63" Side Post Alternator
  • 140 Amp
  • With Side Battery Post
  • 6-Groove Pulley
  • Polished

    This CS-130 Delco Series alternator has the mounting ear off-set to the left. Available in 105 amp or 140 amp versions, you can choose between a 1-wire (needs only the output cable) or plug-in that will use a factory regulator harness. Also available is Powermaster's unique side output post for those applications that need clearance at the rear of the alternator

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • Excellent output at idle
  • Internal and external fans
  • Highly efficient
  • Highest output small case Delco
  • Gold battery post
  • Proof-of-Performance Tag
  • Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators

105A Specifications

  • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

    140A Specifications
  • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

Alternator Plug Type

Part TypeAlternator
Product LinePowermaster GM CS130 Style Alternators
BrandPOWERMASTER
Package Height7.5
Package Width8.0
Package Length9.5
Weight11.9 PG
Part CategoryPerformance Parts
Voltage Compatibility12
One-Wire CapableNo
Pulley IncludedYes
Alternator Brackets IncludedNo
Pulley StyleSerpentine Pulley
Advertised Amperage Output140 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM CS130
MountingOEM
Amperage140 AMP
Alternator FinishPolished
Belt IncludedNO
Part FitmentDirect Fit
Regulator StyleInternal
Vendor Part Number67461
Package Qty1
Package TypeEA
