Made in USA

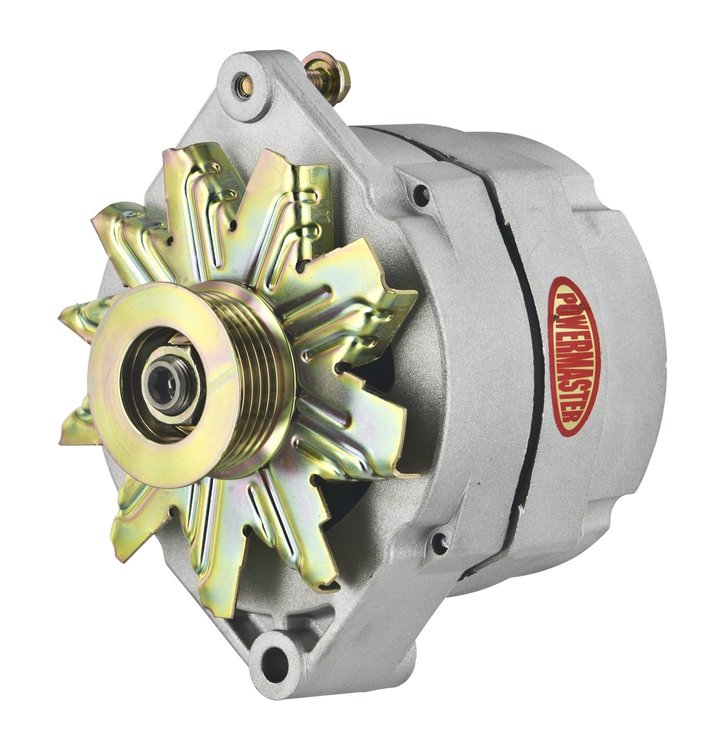

GM 12si-Style Alternator Natural
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-7294-104

GM 12si-Style Alternator Natural

$15999
3 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM 12si-Style 100 Amp Alternator, Serpentine Pulley
    GM 12si-Style Alternator
  • Natural
  • 100 Amp
  • 6-Groove Serpentine Pulley
  • 2" Mounting Flange

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Race Prepped Alternators feature a balanced rotor for high rpm applications.

Show MoreFeatures:
  • Excellent Idle Amperage
  • 1 or 3-Wire Operation
  • Most Popular GM
  • Straight Mount 6.61"
  • Available Up to 150 AmpsNote: Charge Wire Not Included. Smooth Look Alternators:
  • The Ultimate Custom Billet look at affordable prices
  • Smooth die cast housing with teardrop design
  • One or three wire
  • Available in 100 and 140 amp output
  • Custom HV (high volume) fan - optional
  • Largest selection of fans, pulleys, nose cones, and baffle plates in the industry
  • Smooth back with special Powermaster vents for pull through cooling
  • Gold battery post
  • Available in 4 finishes
  • Proof-of-Performance Tag
    Alternator Plug Type

    JEGS Easy Kits are designed by JEGS Professionals to help you get all the performance parts you need.

Part TypeAlternator
Product LinePowermaster GM 12si Style Alternators
BrandPOWERMASTER
Package Height7.5
Package Width7.5
Package Length8.0
Weight13.1 PG
Part CategoryPerformance Parts
Voltage Compatibility12
One-Wire CapableYes
Pulley IncludedYes
Alternator Brackets IncludedNo
Pulley StyleSerpentine Pulley
Advertised Amperage Output100 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM 12si
MountingWith Mounting Kit
Amperage150 AMP
Alternator FinishPolished
Belt IncludedNO
Part FitmentDirect Fit
Regulator StyleInternal
Vendor Part Number7294-104
Package Qty1
Package TypeEA
