Made in USA

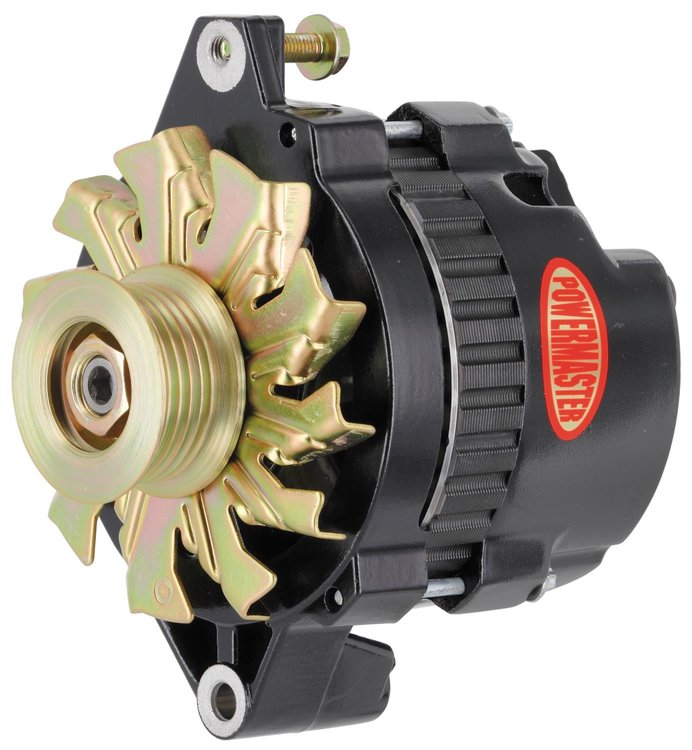

CS130 GM Race-Prepped Alternator 105 Amp
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-8012

CS130 GM Race-Prepped Alternator 105 Amp

$17799
ShippingShips on 09/10/2026
Lowest PriceLowest Price Guarantee

CS130 105 Amp GM Race-Prepped Alternators
    CS130 GM Race-Prepped Alternator
  • 105 Amp
  • 12 Volt
  • 6-Groove Pulley
  • Black

  • True One Wire Hookup
  • Gold Battery Post
  • Proof Of Performance Tag

GM has offered several series of alternators over the years, each time taking a step up in performance. The great thing about these alternators and aftermarket brackets is that for the most part they are interchangeable. Starting with the externally regulated 10dn alternator of the 1960s and moving all the way to the CS130D alternator of late, aftermarket brackets with rod end tensioners will interchange. The 2" mounting foot width is common to all of them, and the 6.61" bolt spacing is common (except the CS130D has 7.24" bolt spacing, which many brackets accommodate). Made in the U.S.A.

Show More

Features:

  • Excellent output at idle
  • Internal and external fans
  • Highly efficient
  • Highest output small case Delco
  • Gold battery post
  • Proof-of-Performance Tag
  • Smooth Back Note: Charge Wire Not Included. Delco CS130 Alternators

105A Specifications

  • 80A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

    140A Specifications
  • 90A @ 2,400 RPM @ 13.2 VDC @ 77F
  • Operating Range: -40C to 150C
  • Maximum RPM: 18,000

Alternator Plug Type

Part TypeAlternator
Product LinePowermaster GM CS130 Style Alternators
BrandPOWERMASTER
Package Height7.4
Package Width7.4
Package Length8.2
Weight10.6 PG
Part CategoryPerformance Parts
Voltage Compatibility12
One-Wire CapableYes
Pulley IncludedNo
Alternator Brackets IncludedNo
Advertised Amperage Output105 amps
Regulator IncludedYes
QuantitySold individually
Alternator Case StyleGM CS130
MountingWithout Mounting Kit
Amperage105 AMP
Alternator FinishNatural
Belt IncludedNO
Part FitmentSemi Universal
Regulator StyleInternal
Vendor Part Number8012
Package Qty1
Package TypeEA
No Questions
No Reviews
