9004-9 PowerMAX Plus Starter for GM LS, LSX, and LS Truck Engines
InfoVehicle Info Needed
POWERMASTERPART NUMBER: 713-9004-9

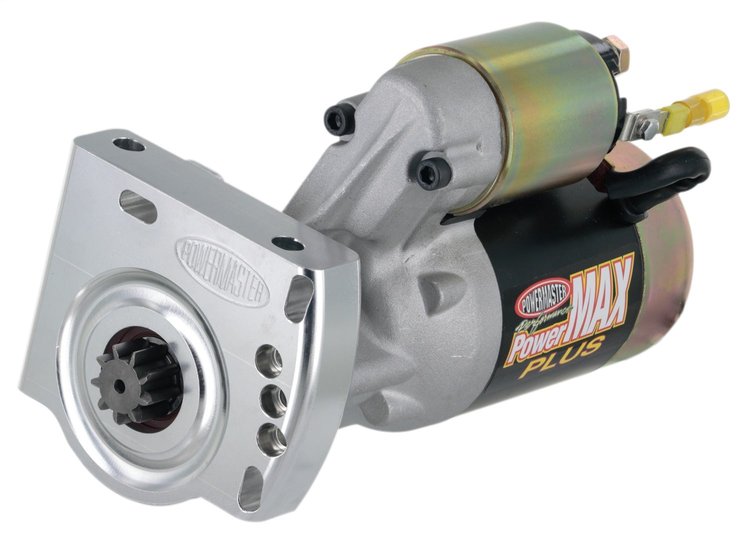

9004-9 PowerMAX Plus Starter for GM LS, LSX, and LS Truck Engines

$20799
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

GM
PowerMAX Plus Starter
  • for GM LS, LSX, and LS Truck Engines
  • 168-Tooth Flywheel
  • 16:1 Max Compression
  • 3.7:1 Gear Reduction

    High-compression LS combinations need a starter with enough torque and clearance for common performance engine bay layouts. This Powermaster PowerMAX Plus starter delivers gear-reduction cranking power with an adjustable billet aluminum mounting block for LS and LSX applications.

    Powermaster 9004-9 PowerMAX Plus Starter Features:

    • for GM LS, LSX, and LS Truck Engines
    • 168-Tooth Flywheel
    • 16:1 Max Compression
    • 3.7:1 Gear Reduction
    • 168-tooth flywheel application
    • 16:1 maximum compression ratio
    • 180 lb-ft torque output
    • 3.7:1 gear reduction
    • 2.5 HP rating
    • 1.8 kW output
    • Clockwise rotation
    • 9-tooth starter drive
    • Billet aluminum mounting block
    • 3-position rotation
    • Natural finish
    • Bolt and shim kit included
    • UPC: 692209022954
  • Part TypeStarter Motor
    BrandPOWERMASTER
    Package Height5.7
    Package Width7.4
    Package Length12.5
    Weight12.8 PG
    Part CategoryPerformance Parts
    Hardware IncludedYes
    Starter RotationClockwise (Right)
    QuantitySold individually
    Mounting Hardware IncludedYes
    Mounting Block MaterialBillet aluminum
    Flywheel/Flexplate168-tooth
    Maximum Recommended Compression Ratio16.0:1
    StyleChevy LS
    Part FitmentDirect Fit
    Mounting Shims IncludedYes
    Gear Reduction Ratio3.70:1
    FinishNatural
    Vendor Part Number9004-9
    Package Qty1
    Package TypeEA
