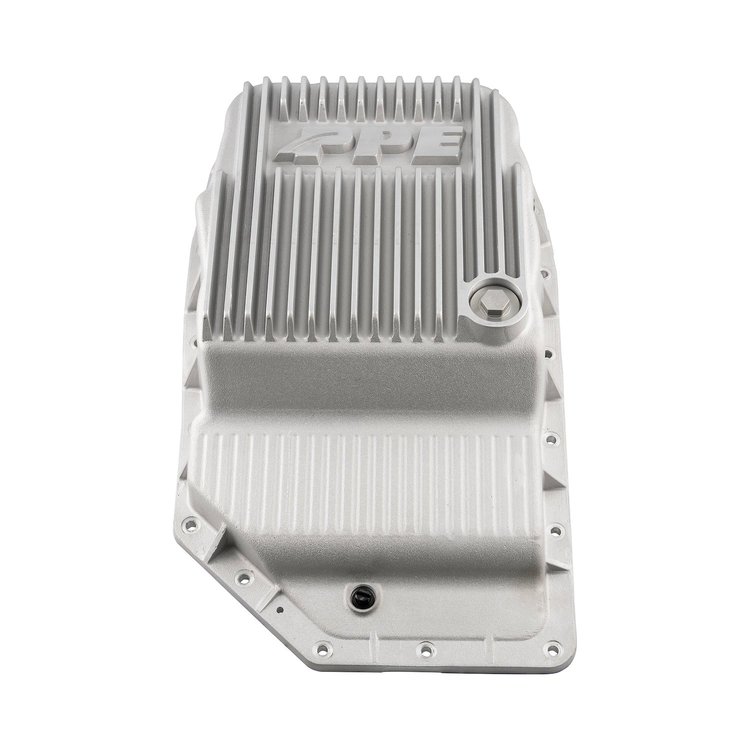

PPE 128051900 Features:

This heavy-duty transmission pan is designed for 2007-2023 Chevy Silverado 2500HD, 3500HD and GMC Sierra 2500HD, 3500HD models equipped with the 6L90 automatic transmission. Manufactured from high-strength A356.0-T6 cast aluminum, it increases transmission fluid capacity by 1.5 quarts to improve thermal capacity and cooling performance. Deep external cooling fins, internal baffles, and cast-in gussets help dissipate heat, reduce fluid slosh, and increase structural rigidity. Installation utilizes the factory mounting location and includes a new transmission filter and gasket.

• A356.0-T6 cast aluminum construction
• Raw finish
• Increases transmission fluid capacity by 1.5 quarts
• Deep external cooling fins improve heat dissipation and impact resistance
• Internal baffles enhance heat absorption and reduce fluid sloshing
• Cross-bracing structure increases strength and rigidity
• Cast-in gussets provide additional transmission housing flange support
• 304 stainless steel drain plug with high-temperature neodymium magnet and Viton O-ring
• Fluid level check plug included
• 1/8 in. NPT temperature sender port with pre-installed plug
• Integrated filter supports ensure proper filter placement
• Includes transmission filter and gasket
• Includes mounting hardware
