Product Discontinued
PRECISION TURBOPART NUMBER: 234-J21104210139

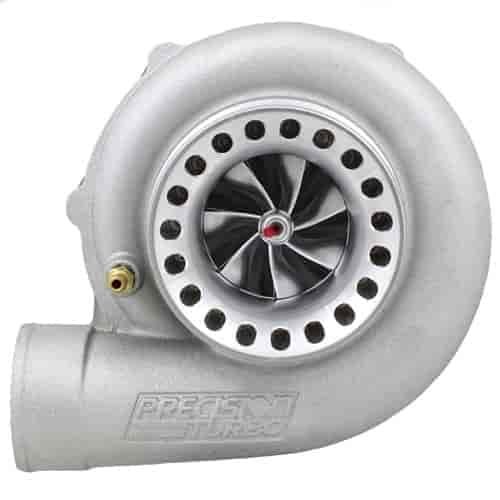

Gen 2 PT6266 CEA Street and Race Turbocharger Rated for up to 800 HP (Single), 1000 HP (Twin)
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
Turbocharger
- Gen 2 PT6266 CEA Street and Race Turbocharger
- Rated for up to 800 HP (Single), 1000 HP (Twin)
Set Up Recommendations: - A PW46 wastegate 234-PBO085-2000J is recommended to effectively control boost.
- Oil should be supplied by a -4 line which is connected to the turbo by 234-PFT047-3039J.
- The recommended oil drain flange is 234-PTP074-2008J and should be connected to a -10 AN oil drain line by fitting 234-PFT047-3009J.
- The PTE specific THV housing will require a V-band turbine inlet flange 234-PTP074-1030J and inlet clamp 234-PTP071-1027J as well as the V-band turbine discharge weld flange 234-PTP074-3050J and discharge clamp 234-PTP071-1029J for manifold and downpipe connections.
- It is always a good idea to cool the boost on with the PTE 750 HP intercooler 234-PIN053-1015J
Part TypeTurbocharger
BrandPRECISION TURBO
Package Height10.8
Package Width10.8
Package Length11.0
Weight16.63 PG
Part CategoryPerformance Parts
Vendor Part NumberJ21104210139
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
