1TK212-SCI Features:

• Delivers boost on demand for on and off-road performance
• Retains the factory intake manifold and factory airbox with filter
• Installation can be completed with common hand tools
• Compatible with pump gas

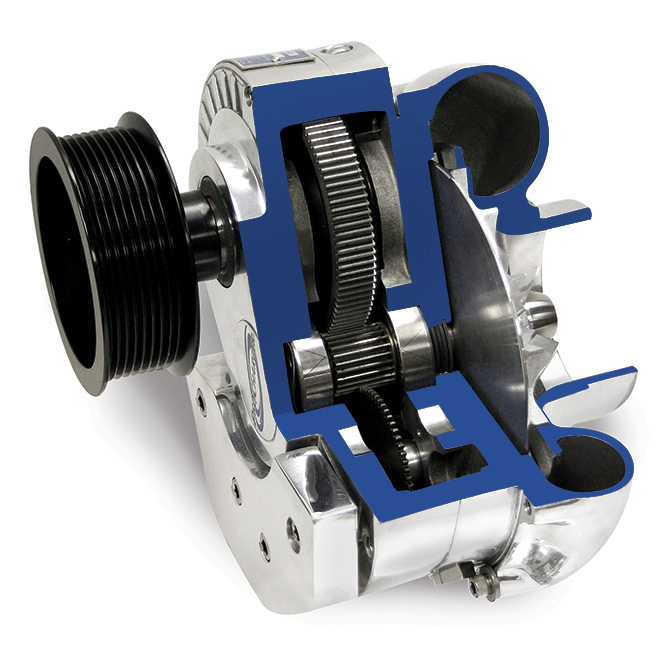

• D-1SC Supercharger:
  • CNC-machined and heat-treated aluminum alloy
  • Centrifugal gear-driven
  • Self-contained oiling lubrication system
  • 7075 T-6 aircraft billet aluminum impellers and gearcase
  • 4.10:1 internal step-up ratio
  • 1,400 CFM max flow
  • 3.750 in. inlet hose diameter
  • 3 in. outlet hose diameter
• Air-to-Air Intercooler:
  • Bar and plate core design
  • Produces cool charge air temperatures for maximum power gains
  • Large-volume air plenums and surface area for increased heat dissipation

Note:

• Larger fuel injectors are needed if upgrading boost and power levels

Emissions: CARB (California Air Resources Board) D-365-30 is legal to sell in California and any US state adopting CA restrictions. This part is legal for sale and use on Emissions Controlled Vehicles, in all 50 states, when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number.
