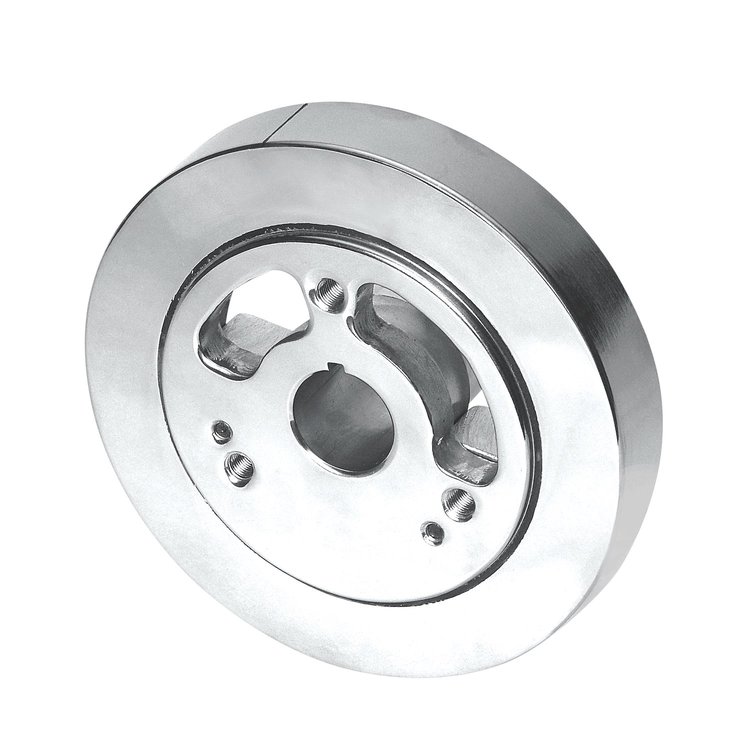

Powerforce Harmonic Damper Small Block Chevy 383/400
- Powerforce Harmonic Damper
- Small Block Chevy 383/400
- 6.75'' Diameter
- External Balance
- Polished Stainless Steel
Note: Although this model damper features a bolt-in counterweight, the damper cannot be used without the weight. Due to the windows cut in the front face of the damper if the counterweight is removed it is still not a neutral balance damper. If you need a neutral balance 6-3/4" damper, use #428-80000 or #428-90000.Small block Chevy engines have used three different timing pointer locations. Pre-1969 engines have the TDC mark 2° to the left of the keyway centerline. 1969-85 dampers have the TDC mark 10° to the left of the keyway centerline. 1986-92 dampers have the TDC mark 40° to the left of the keyway centerline. Professional Products' small block Chevy dampers use the 10° TDC position. 6.75" models have two TDC marks: one that is 10° and another that is 40° to the left of the keyway. If you have a pre-1969 vehicle, you can use one of the aftermarket bolt-on timing pointers for correct timing mark alignment.
