Vehicle Info NeededPROFORMPART NUMBER: 778-117FS10
1-2-3 Series Radiator System, Universal Ford Fitment, for Manual Transmissions, 17 in. Core Width - Natural Finish
$36300$484.00You Save$121.00
Ships on 09/16/2026
Lowest Price GuaranteeUniversal
Ford
Ford
1-2-3 Series Radiator SystemUniversal Ford Fitment For Manual Transmission Applications 17 in. Core Width 2.400 in. Core Thickness Single-Pass All-Aluminum Construction Natural Finish
117FS10 Features:
- Includes (1) 14 in. electric cooling fan, (1) Aluminum fan shroud, (1) Billet aluminum radiator cap, and (1) Thread-in adjustable thermostat controller
- Patented four-corner design with TIG-welded end tanks
- Optimized louvers for maximum cooling performance
- Deep draw headers form an extra solid seal between the tube and header

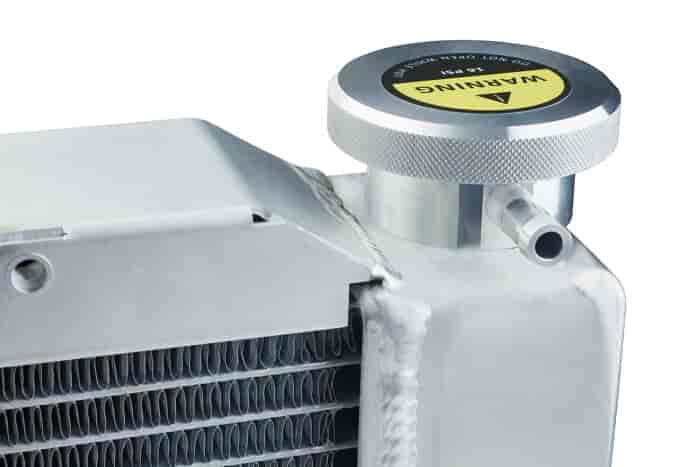

- Billet aluminum filler neck with a high-capacity overflow tube
- Pre-threaded bungs
- The cooling fan flows 1,650 CFM
- Supports up to 600 horsepower
- 1.500 in. diameter right/passenger side inlet
- 1.750 in. diameter left/driver side outlet
- 22.300 in. overall core width
Drop-in High-Performance Cooling for Your Engine
Proform 1-2-3 Series Radiator Systems eliminate the need to piece together your own "DIY" combination by joining a complete high-quality cooling solution right out of the box! A radiator, fan shroud, and electric fan are mated together seamlessly to deliver a professional appearance at an affordable price. Drive worry-free, knowing you've chosen the best in vehicle cooling!
Part TypeCooling Fan Kit
Product LineProform 1-2-3 Series Radiator Systems
BrandPROFORM
Package Height9.0
Package Width22.25
Package Length23.75
Weight20.8 PG
Part CategoryPerformance Parts
Outlet Size1.75 in (44.5 mm)
Fan Quantity1
Wiring IncludedYes
Radiator Cap IncludedYes
Radiator MaterialAluminum
Shroud MaterialAluminum
QuantitySold as a kit
Inlet LocationPassenger Side
Inlet Size (In.)1.5
Core Height18 in (457.2 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter14 in (355.6 mm)
Core Width17 in (431.8 mm)
Row Quantity1
Outlet LocationDriver side
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerNo
Maximum Fan Cfm1,650 cfm
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
