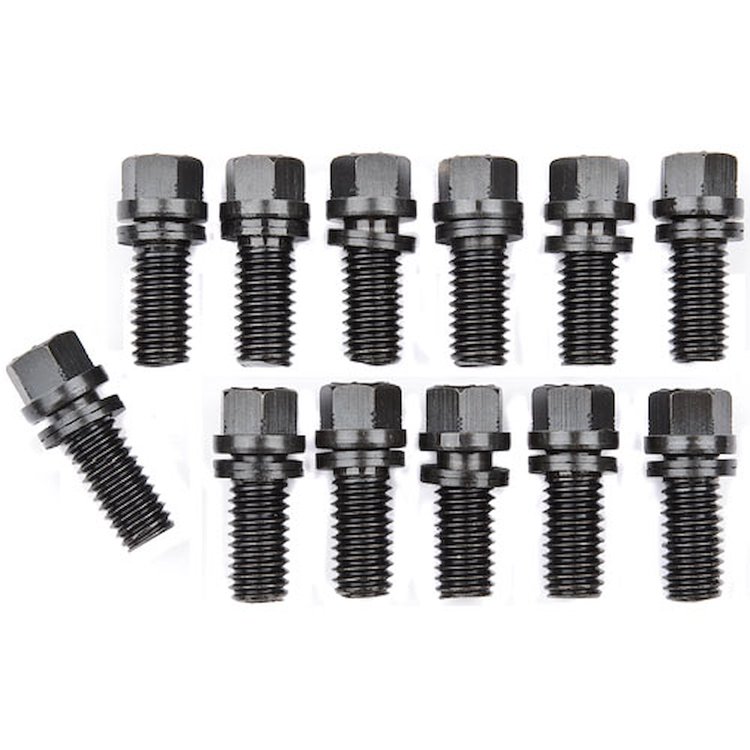

Wedge-Locking Header Bolts for Small Block Chevy, Big Block Mopar, AMC, Buick, Oldsmobile, & Pontiac in 3/8" x 3/4" Long
InfoVehicle Info Needed
PROFORMPART NUMBER: 778-66751

Wedge-Locking Header Bolts for Small Block Chevy, Big Block Mopar, AMC, Buick, Oldsmobile, & Pontiac in 3/8" x 3/4" Long

$3495
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Items You Need

Ultra-Torque Assembly Lube 0.5 ounces

ARP

Ultra-Torque Assembly Lube 0.5 ounces

Part Number : 070-100-9908
$199
Ultra-Torque Assembly Lube 1.69 ounces

ARP

Ultra-Torque Assembly Lube 1.69 ounces

Part Number : 070-100-9909
$1099
Ultra-Torque Assembly Lube w/Brush Top Container 10 ounces

ARP

Ultra-Torque Assembly Lube w/Brush Top Container 10 ounces

Part Number : 070-100-9910
$2699
Ultra-Torque Assembly Lube w/Brush Top Container 20 ounces

ARP

Ultra-Torque Assembly Lube w/Brush Top Container 20 ounces

Part Number : 070-100-9911
$3799

Wedge-Locking Header Bolts
    Wedge-Locking Header Bolts
  • Small Block Chevy, Big Block Mopar, AMC, Buick, Oldsmobile, & Pontiac
  • 3/8" Diameter x 3/4" Long
  • Black Oxide
  • 12/pkg

    Fits: GM V6, SBC 265-400, Buick, Olds, Pontiac '79 & earlier, Mopar BB 383-440 exc 413, and AMC V8's with 3/8" bolts

    Note: 3/4" length bolts most often used for cast iron heads. 1" length bolts recommended for aluminum heads.

    Proform's Wedge-Locking grade 8 header bolts are designed to keep the bolts from backing out by using a pair of permanently attached special washers.

    Show More

    So, How Do They Work? When the bolt is torqued to 28+ ft-lbs, the washers' super-hardened external teeth bite into and grip the bottom of the bolt head and the top surface of the header. After being self-locked in this manner, any bolt-loosening rotation is blocked by a wedge-locking action created by the washers' interfacing, matching cams. It's an uphill climb: vibration that might ordinarily loosen the bolt actually increases the wedge-locking tension, securing the bolt even more.

    Because this simple wedge-locking method uses tension instead of friction, contact with oil actually facilitates the wedge effect. When changing headers, PROFORM Header Bolts can be untightened with a normal wrench, lubricated, and reused. These high-quality bolts are sold in complete sets (Enough bolts for both headers).

Part TypeHeader Bolt
Product LineProform Wedge-Locking Header Bolts
BrandPROFORM
Package Height1.5
Package Width3.8
Package Length6.4
Weight0.61 PG
Part CategoryPerformance Parts
Thread Size (In.)3/8-16
ColorBlack Oxide
Underhead Length0.75 in (19.1 mm)
QuantitySold as a set of 12
Fastener StyleBolt
Fastener FinishBlack oxide
Part FitmentSemi Universal
Fastener MaterialSteel
Head StyleHex
Vendor Part Number66751
Package Qty1
Package TypeEA
