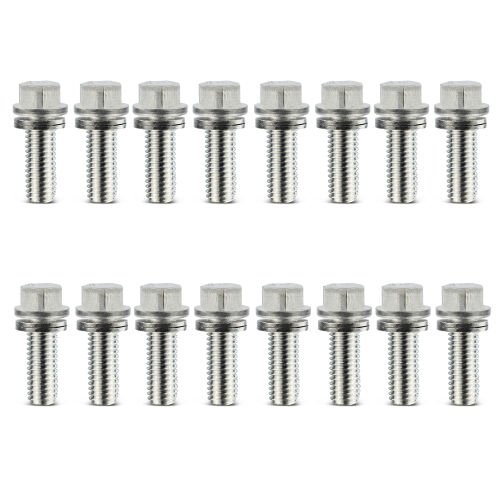

66823 Wedge-Locking Header Bolts for Big Block Chevy ,Big Block Mopar 413 & Small Block Ford 289-351W  [3/8 in. x 3/4 in. Long]
InfoVehicle Info Needed
PROFORMPART NUMBER: 778-66823

66823 Wedge-Locking Header Bolts for Big Block Chevy ,Big Block Mopar 413 & Small Block Ford 289-351W [3/8 in. x 3/4 in. Long]

$3995
1 left in stock
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

Wedge-Locking Header Bolts
Wedge-Locking Header Bolts
  • Big Block Chevy 396-502
  • Ford 5.0L, Small Block 289-351W
  • Mopar 413
  • 3/8 in.-16 Thread Diameter x 3/4 in. Long
  • Plated Nickel Finish
  • Hex Head
  • Grade 8 Steel
  • Set of 16

    Proform 66823 Wedge-Locking Header Bolts for Big Block Chevy, Big Block Mopar 413 & Small Block Ford 289-351W [3/8 in. x 3/4 in. Long] Features:

    • Special washers have super-hardened external teeth that grip the bolt head and header surface when torqued to 28+ ft-lbs
    • Self-locked configuration prevents bolt-loosening rotation through a wedge-locking action created by matching cams on the washers
    • Vibration increases wedge-locking tension, enhancing the bolt's security
    • Simple wedge-locking method relies on tension, allowing oil contact to facilitate the wedge effect
    • PROFORM Header Bolts can be untightened with a normal wrench, lubricated, and reused during header changes
    • Proform's Wedge-Locking grade 8 header bolts are designed to keep the bolts from backing out by using a pair of permanently attached special washers.

      Show More

      So, How Do They Work? When the bolt is torqued to 28+ ft-lbs, the washers' super-hardened external teeth bite into and grip the bottom of the bolt head and the top surface of the header. After being self-locked in this manner, any bolt-loosening rotation is blocked by a wedge-locking action created by the washers' interfacing, matching cams. It's an uphill climb: vibration that might ordinarily loosen the bolt actually increases the wedge-locking tension, securing the bolt even more.

      Because this simple wedge-locking method uses tension instead of friction, contact with oil actually facilitates the wedge effect. When changing headers, PROFORM Header Bolts can be untightened with a normal wrench, lubricated, and reused. These high-quality bolts are sold in complete sets (Enough bolts for both headers).

    Part TypeHeader Bolt
    Product LineProform Wedge-Locking Header Bolts
    BrandPROFORM
    Package Height1.65
    Package Width4.5
    Package Length6.65
    Weight0.745 PG
    Part CategoryPerformance Parts
    Part FitmentSemi Universal
    Vendor Part Number66823
    Package Qty1
    Package TypeEA
