PROFORMPART NUMBER: 778-67200-E85

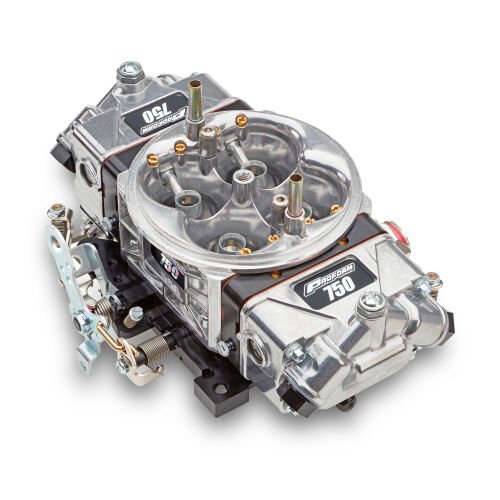

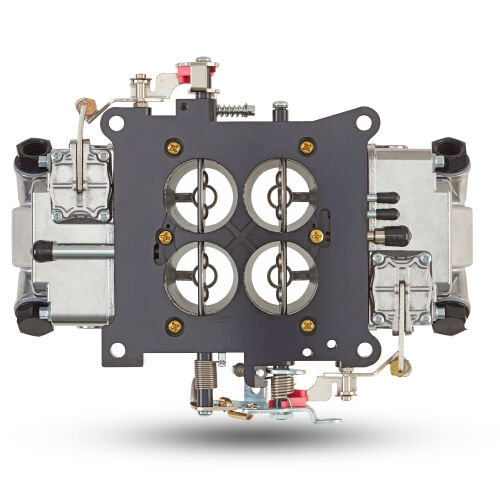

Race Series 750 CFM Drag Race E85 Carburetor w/2-Step Down-Leg Boosters
$92795
Drag Racing-E85
Drag Race Carburetor750 CFM E85 2-Step Down-Leg Boosters Mechanical Secondary Billet Metering Blocks w/4-Corner Idle/Air Screws Billet 4150 Throttle Base Plate High-Flow Main Body Aluminum Fuel Bowls Screw-In Air Bleeds
Proform 67200-E85 Race Series 750 CFM E85, Drag Racing Model Carburetor with 2-Step Down-Leg Boosters Features:
- High-flow carburetor main body with no air horn or choke tower
- Billet metering blocks with fuel control baffling, changeable idle feed restriction, and adjustable screw-in air bleeds
- High-performance billet throttle baseplate with adjustable secondary air flow cam bracket, power-valve blow-out protection, slabbed shafts, slip-link mechanical secondary linkage, and serviceable throttle levers
- Aluminum fuel bowls with internal baffles, lower fuel ramp, and sight glass windows
- Timed and full vacuum ports for accessories and tuning
- Uses standard replacement and tuning parts
- Vibratory tumble polished finish
Emissions Note:
This part is only legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles or on vehicles used solely for the purposes of closed competition racing.
CLICK THIS LINK FOR IMPORTANT CARB & EPA EMISSIONS INFORMATION ABOUT THIS PART
Part TypeCarburetor
BrandPROFORM
Package Height7.5
Package Width11.25
Package Length13.5
Weight9.8 PG
Part CategoryPerformance Parts
Primary Power Valve (Hg)4.5 Hg
UsageDrag Racing
Primary Discharge Nozzle Size0.037 in (0.9 mm)
Carburetor Type4150 Style Square Flange
ChokeNone
Primary Jet Size85
Carburetor Height3.25 in (82.55 mm)
Carburetor FinishPolished
QuantitySold individually
Primary Inner Air Bleed Sizes Included28
Fuel InletDual
BarrelFour
Cfm750
Supercharged ApplicationNo
Primary Outer Air Bleed Sizes Included65
Secondary Outer Air Bleed Sizes Included65
Secondary Discharge Nozzle Size0.037 in (0.9 mm)
FuelE85
Booster TypeDown-leg
Secondary TypeMechanical
Secondary Jet Size91.5
Part FitmentUniversal
Secondary Inner Air Bleed Sizes Included28
Vendor Part Number67200-E85
Package Qty1
Package TypeEA
