Vehicle Info NeededPROFORMPART NUMBER: 778-69590-17

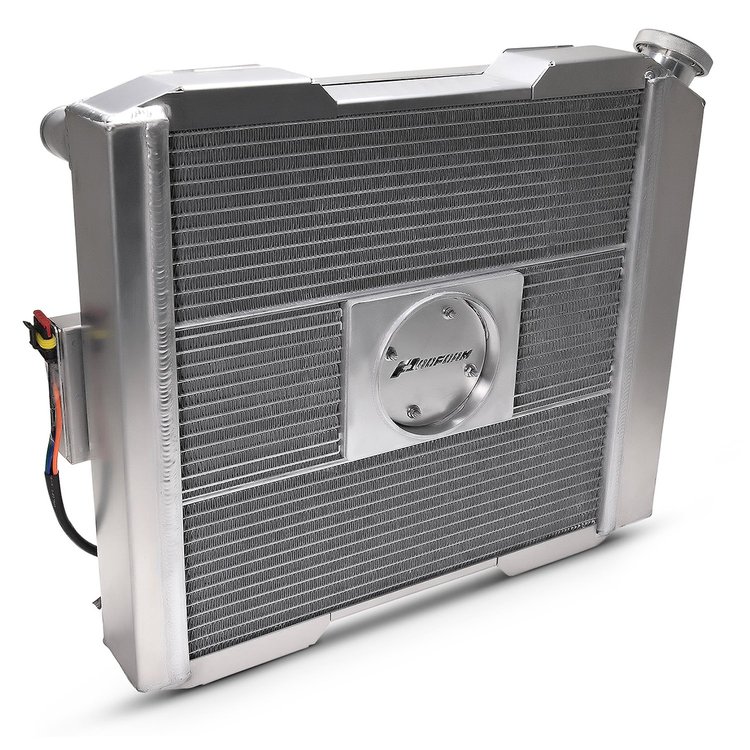

Slim-Fit Radiator System
$74999
Ships on 09/04/2026
Lowest Price GuaranteeFord
Slim-Fit Radiator SystemFord-Style Universal Manual Transmission Applications 500 HP Max 18.500 in. H x 21.400 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:
- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional duel 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Part TypeRadiator
BrandPROFORM
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height18.5 in (469.9 mm)
Outlet Size1.75 in (44.5 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height17 in (431.8 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter13.25 in (336.55 mm)
Core Width17 in (431.8 mm)
Outlet LocationPassenger side
Overall Width21.4 in (543.6 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerNo
Part FitmentUniversal
Maximum Fan Cfm16.5
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
