Vehicle Info NeededPROFORMPART NUMBER: 778-69600.2

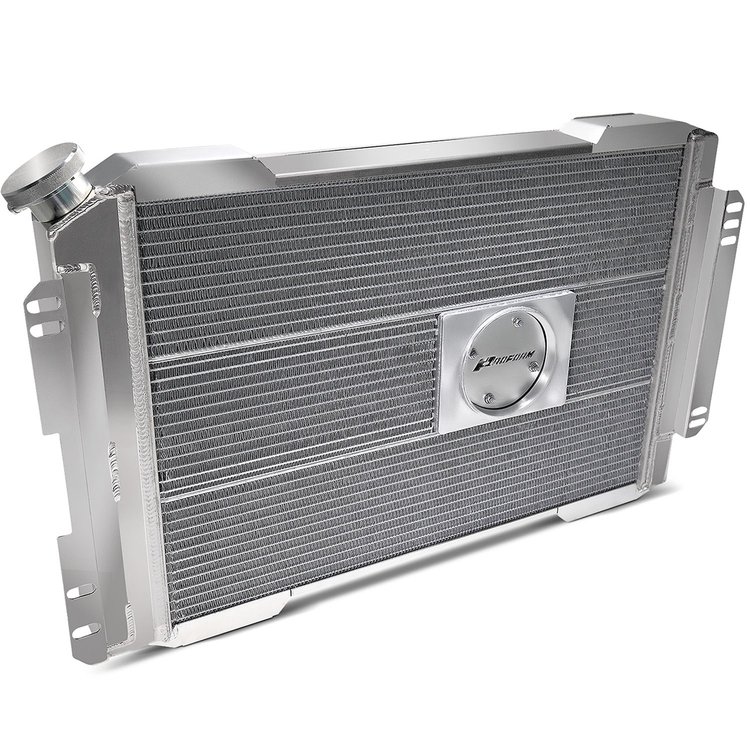

Slim-Fit Radiator System
$79999
Ships on 09/04/2026
Lowest Price GuaranteeGM
Slim-Fit Radiator System1967-1969 Chevrolet Camaro, Pontiac Firebird Automatic Transmission Applications 600 HP Max 18.500 in. H x 28.100 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:

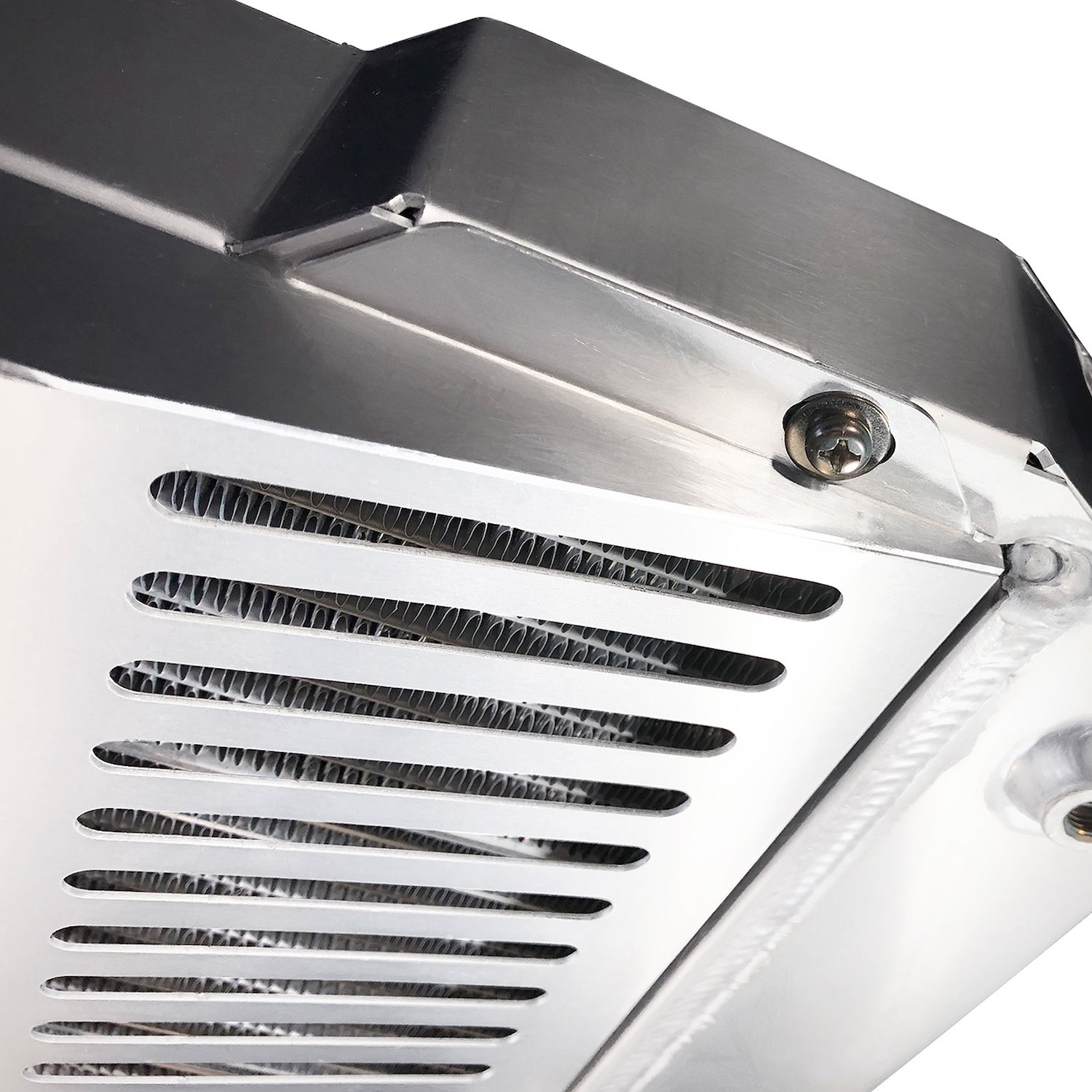

- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional duel 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Part TypeRadiator
BrandPROFORM
Package Height8.0
Package Width22.0
Package Length32.0
Weight29.425 PG
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height18.5 in (469.9 mm)
Outlet Size1.75 in (44.5 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height17 in (431.8 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter15 in (381 mm)
Core Width23 in (584.2 mm)
Outlet LocationPassenger side
Overall Width28.1 in (713.7 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Maximum Fan Cfm2100
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
No Questions
No Reviews
