Vehicle Info NeededPROFORMPART NUMBER: 778-69605.2

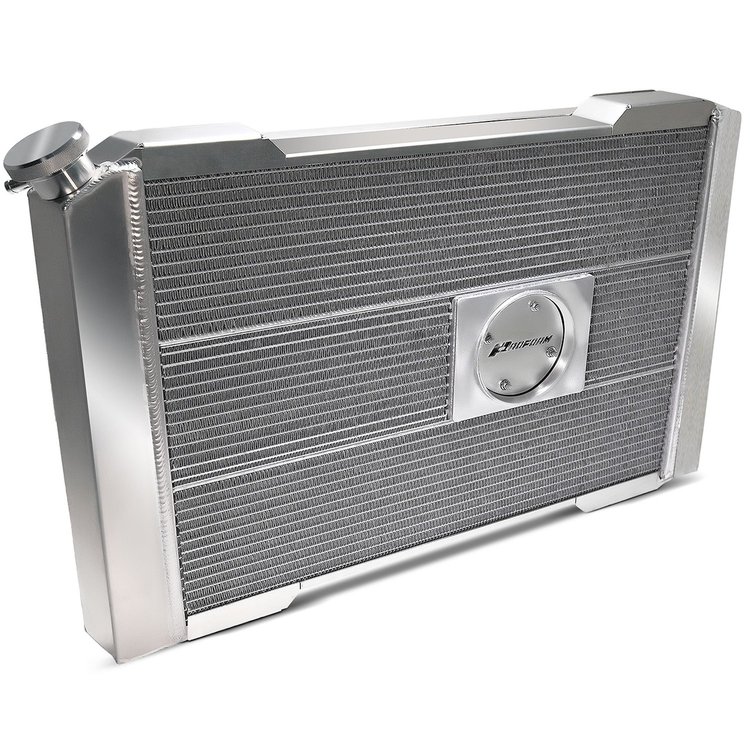

Slim-Fit Radiator System
$79999
Ships on 09/04/2026
Lowest Price GuaranteeGM
Slim-Fit Radiator System1970-1981 Chevrolet Camaro, Pontiac Firebird Automatic Transmission Applications 600 HP Max 18.500 in. H x 31.800 in. W x 4 in. T Natural Aluminum Finish
Slim-Fit Radiator System Features:
- Radiator with integrated shroud and fan system less than 4 in. thick
- Hybrid core made of traditional duel 1 in. tubes and extruded tubes
- Adjustable thermostat
- 100% Fabricated aluminum end tanks
- Billet aluminum filler neck
- High-capacity overflow tube
- Pre-assembled
Radiator Systems With Integrated Fan and Shroud
Proform Slim-Fit Radiator Systems is an all-in-one fabricated aluminum radiator module that is considerably thinner than the industry standard. With a patented, innovative design, these slim-fit systems conserve critical space by integrating the fan motor directly into the radiator core.Part TypeRadiator
Product LineProform Slim-Fit Radiator Systems
BrandPROFORM
Package Height8.0
Package Width22.0
Package Length34.5
Weight32.0 PG
Part CategoryPerformance Parts
Overall Thickness4 in (101.6 mm)
Overall Height18.5 in (469.9 mm)
Outlet Size1.5 in (38.1 mm)
Fan Quantity1
Radiator Cap IncludedYes
Number Of Blades8
Shroud MaterialAluminum
QuantitySold individually
Inlet LocationDriver side
MaterialAluminum
Inlet Size (In.)1.5
Core Height17 in (431.8 mm)
Core Thickness2.4 in (60.96 mm)
Fan Diameter15 in (381 mm)
Core Width27 in (685.8 mm)
Outlet LocationPassenger side
Overall Width31.8 in (807.7 mm)
Radiator FinishNatural
Fan IncludedYes
Transmission CoolerYes
Part FitmentDirect Fit
Maximum Fan Cfm2100
Shroud ColorNatural
Radiator StyleCrossflow
Package Qty1
Package TypeEA
